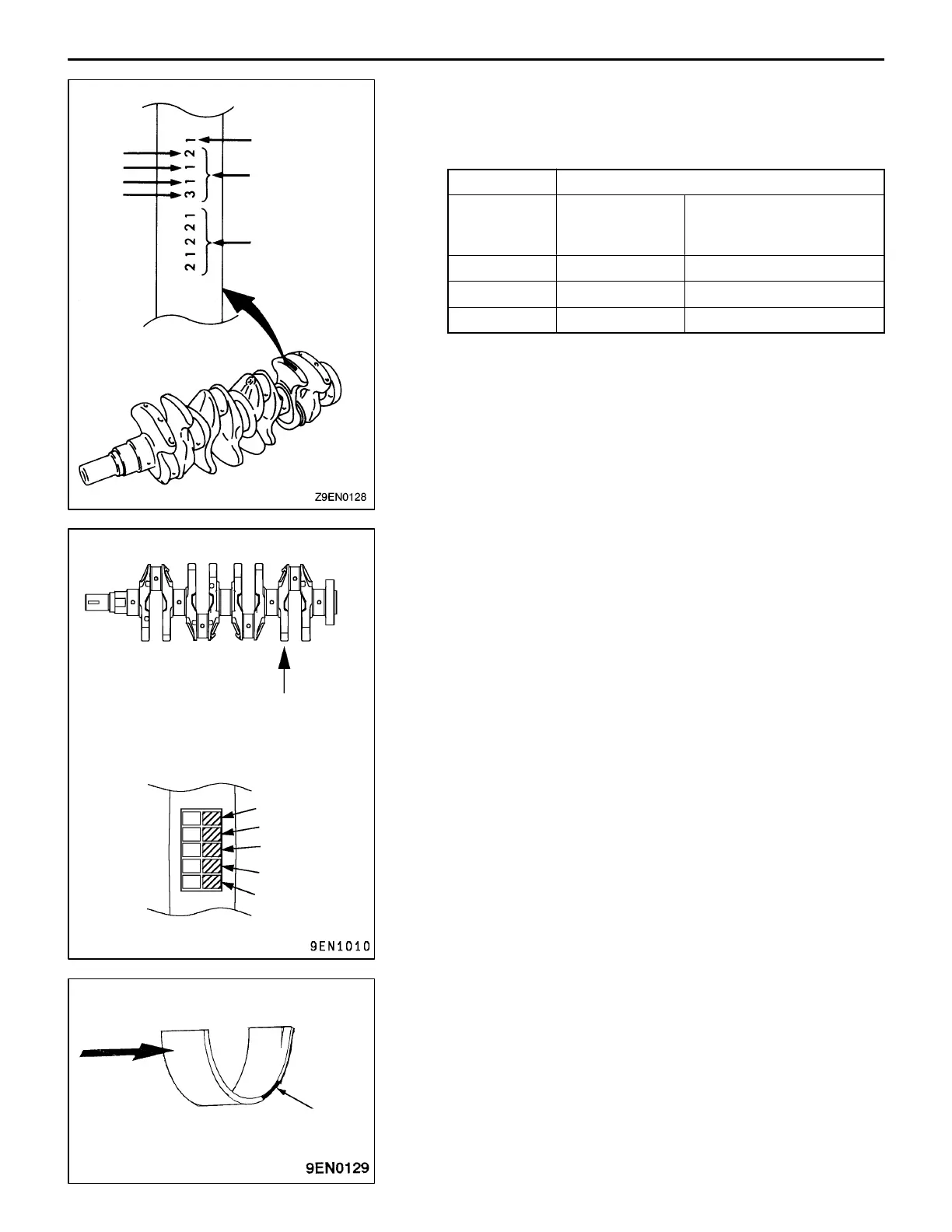

"EA CONNECTING ROD BEARING INSTALLATION
(1) When the bearings are to be replaced, select correct
ones according to the identification marks stamped in
the crankshaft.
Crankshaft Connecting rod bearing
Pin O.D.
identification
mark
Identification
mark (service
part)
Identification colour (Line
production part)
1 S1 or 1 Brown
2 S2 or 2 Black
3 S3 or 3 Green
No.4
No.3
No.2
No.1
Check digit
Crank pin O.D.
identification
mark
Crankshaft journal
O.D. identification
mark
No.4
No.3
No.2
No.1
P view
Check digit
P
Identification
mark
Identification
colour
PWEE9502-K
E
Jun. 2002Mitsubishi Motors Corporation Revised
