Mitsubishi GX Configurator-AD User Manual

6 - 4 6 - 4
MELSEC-Q
6 PROGRAMMING

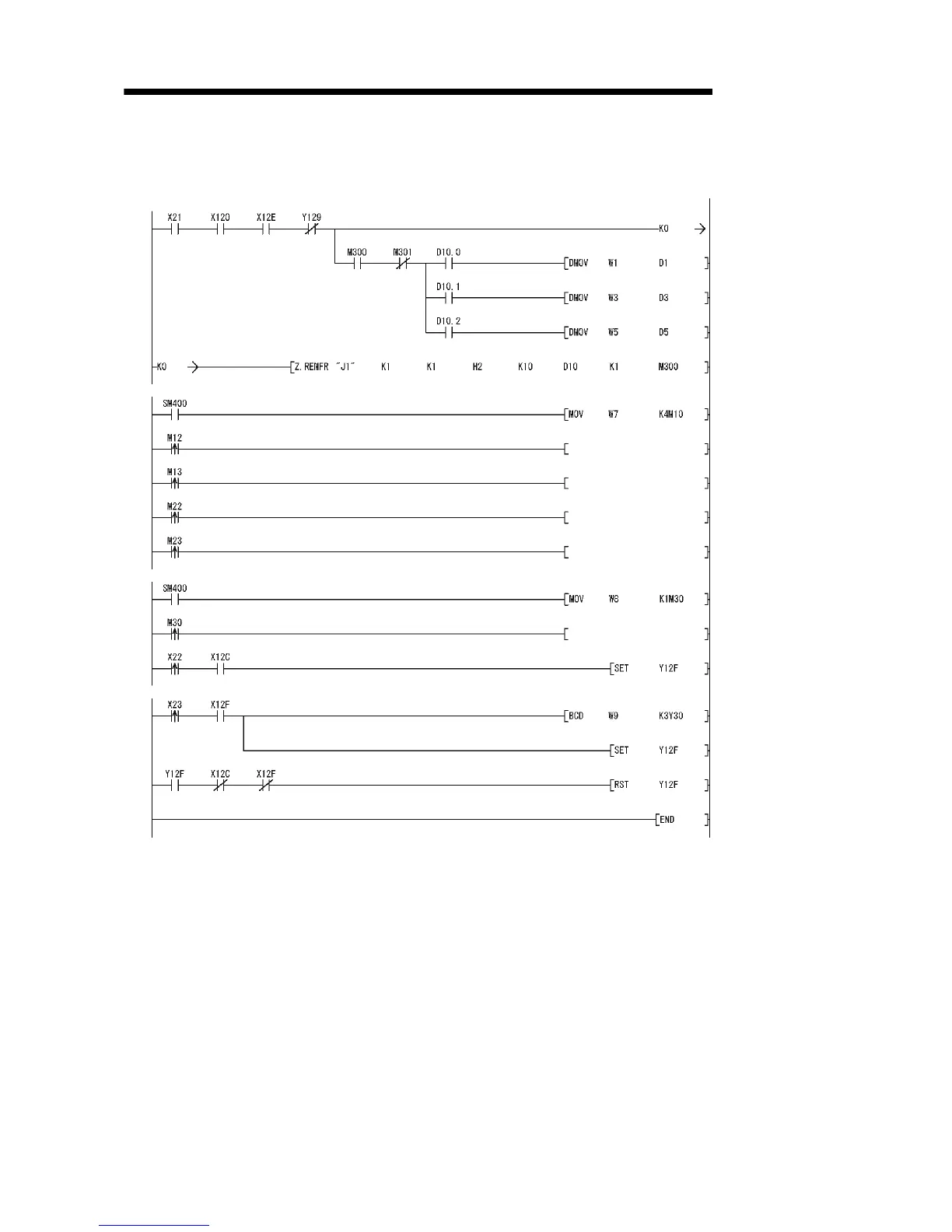

(2) Programming example
Processing at warning occurrence
Processing at warning occurrence
Processing at warning occurrence
Processing at warning occurrence
Processing at error detection
Read the A/D conversion
completed flag.
Read the CH1 digital outpu
t
value (32bit).
Read the CH2 digital outpu
t
value (32bit).
Read the CH3 digital
output value (32bit).
Read the warning
output flag.
Processing at CH2 process
alarm upper limit value
warning occurrence
Processing at CH2 process
alarm lower limit value
warning occurrence
Processing at CH3 rate
alarm upper limit value
warning occurrence
Processing at CH3 rate
alarm lower limit value
warning occurrence
Read the input signal
error detection flag.
Processing at CH1 input
signal error detection
Turn OFF the error
clear request (YF).
Turn ON the error
clear request (YF).
Output the error
code in BCD.
Turn ON the error clear
request (YF).
Error code display and reset processing
Read digital output values
Warning (process alarm, rate alarm) occurrence status and processing at warning occurrence
Input signal error detection status and processing at error detection
