Mitsubishi GX Configurator-AD - Programming Example Using the Utility Package; Programming Example Without Using the Utility Package

6 - 20 6 - 20
MELSEC-Q
6 PROGRAMMING
6.5.1 Programming Example Using the Utility Package
(1) Operating GX Developer

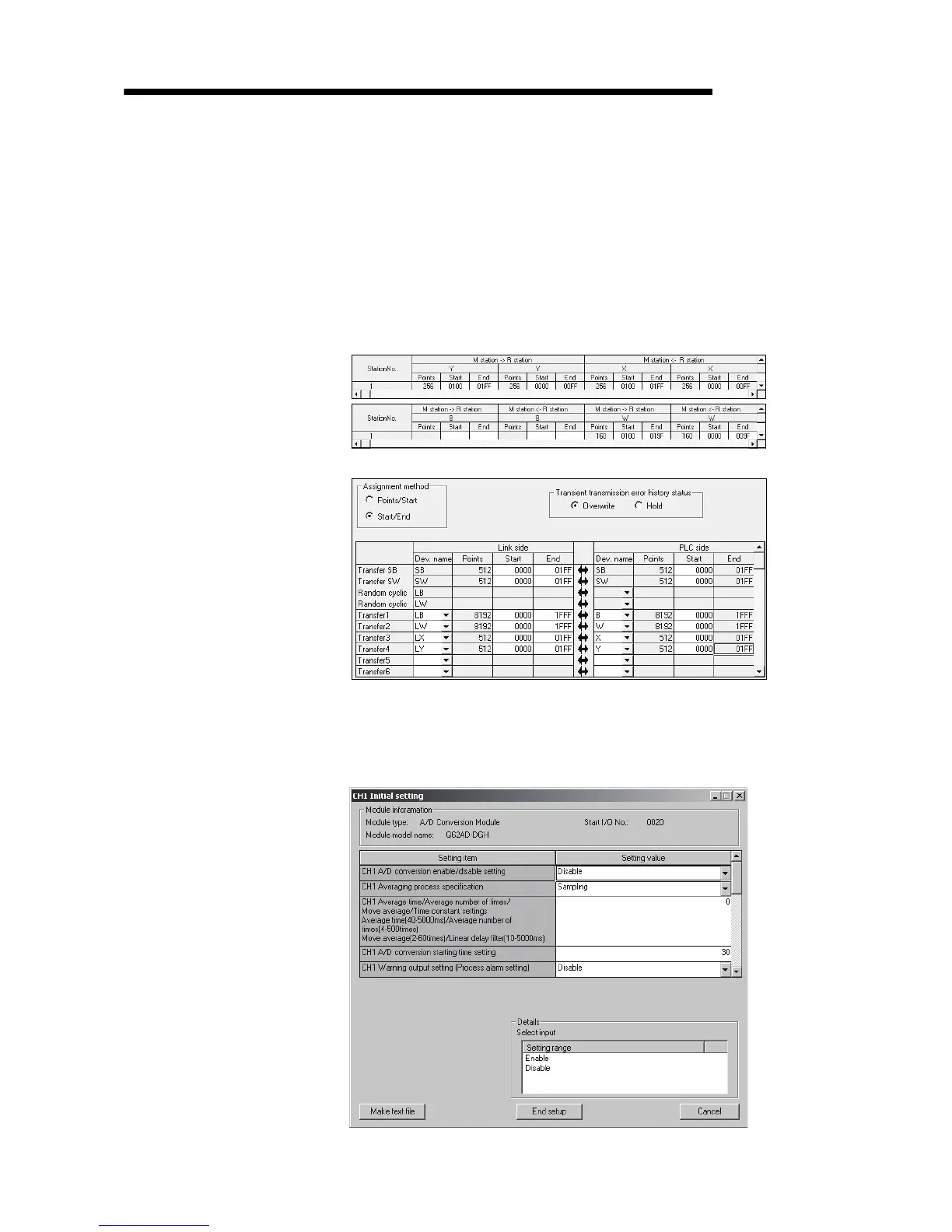

(a) CPU parameter setting
• Network type : MNET/H (Remote master)
• Starting I/O No. : 0000
H
• Network No. : 1
• Total stations : 1
• Mode : Online
• Network range assignment :
• Refresh parameters :
(2) Operating the utility package
(a) Initial setting (see Section 5.4)
Set the initial settings of CH1 and 2.
Refer to Section 6.5 for the settings.
