5 - 10 5 - 10
MELSEC-Q
5 UTILITY PACKAGE (GX Configurator-AD)
5.3.3 Starting the intelligent function module utility
[Purpose of setting]
Start the intelligent function module utility from GX Developer, and display the
module selection screen for the intelligent function module utility parameter
setting. The screens for performing initial setting, automatic refresh setting and
monitor/test module selection (selecting the module for which monitoring/testing
is to be performed) can be started from this screen.
[Startup procedure]
[Tools] [Intelligent function utility] [Start]

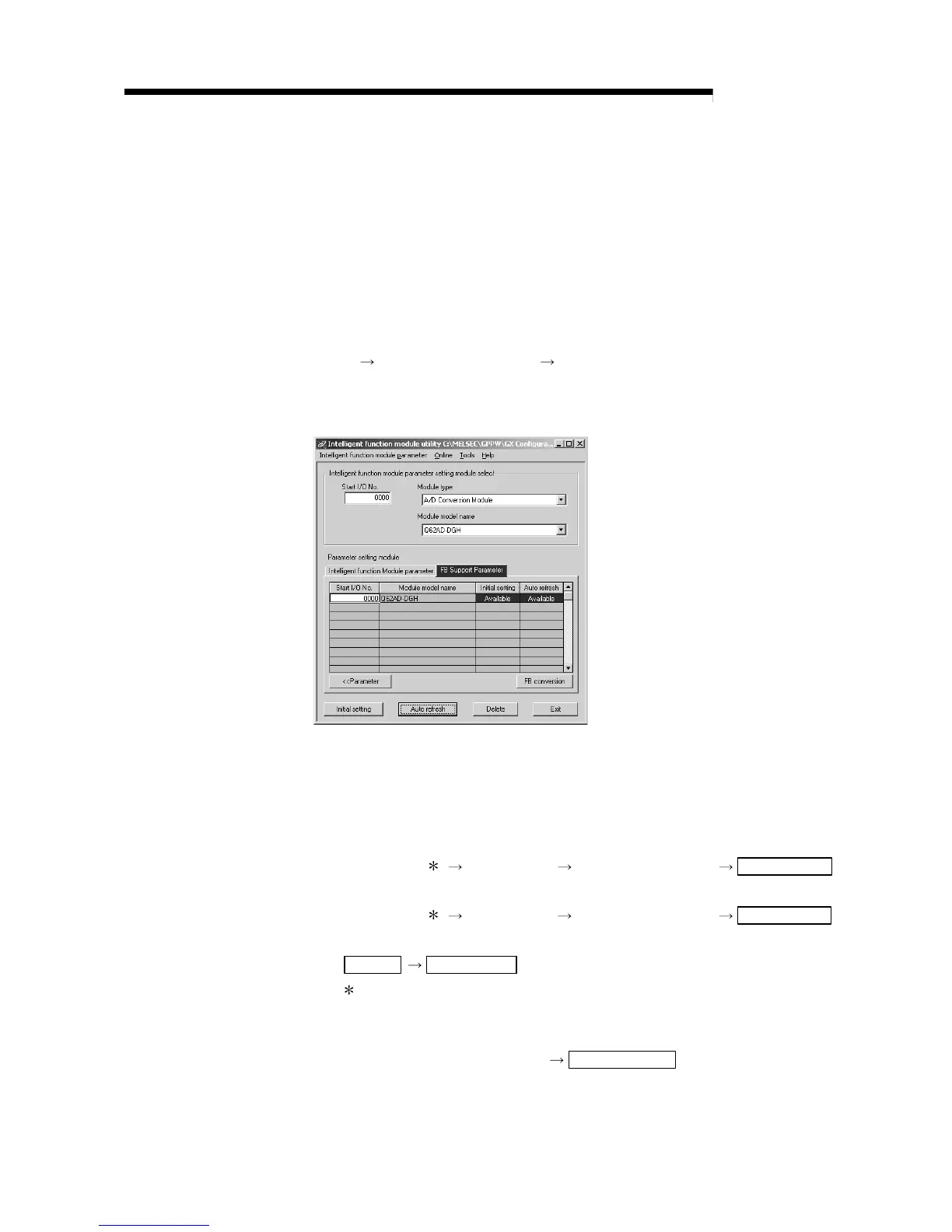

[Setting screen]
Display when the <<FB support parameter>> tab is selected
[Explanation of items]
(1) How to start each screen
Common operations to the <<Intelligent function module parameter>> tab and
<<FB support parameter>> tab
(a) Starting initial setting
"Start I/O No.
" "Module type" "Module model name" Initial setting
(b) Starting automatic refresh setting
"Start I/O No.
" "Module type" "Module model name" Auto refresh
(c) Monitor/test module selection screen
Online
Monitor/test
Enter the start I/O numbers in hexadecimal.
On the <<FB support parameter>> tab
(a) Start-up of the FB conversion screen
<<FB support parameter>> tab
FB conversion
