6 PROGRAMMING
6.2.1 Programming Example Using the Utility Package
(1) Operating the utility package

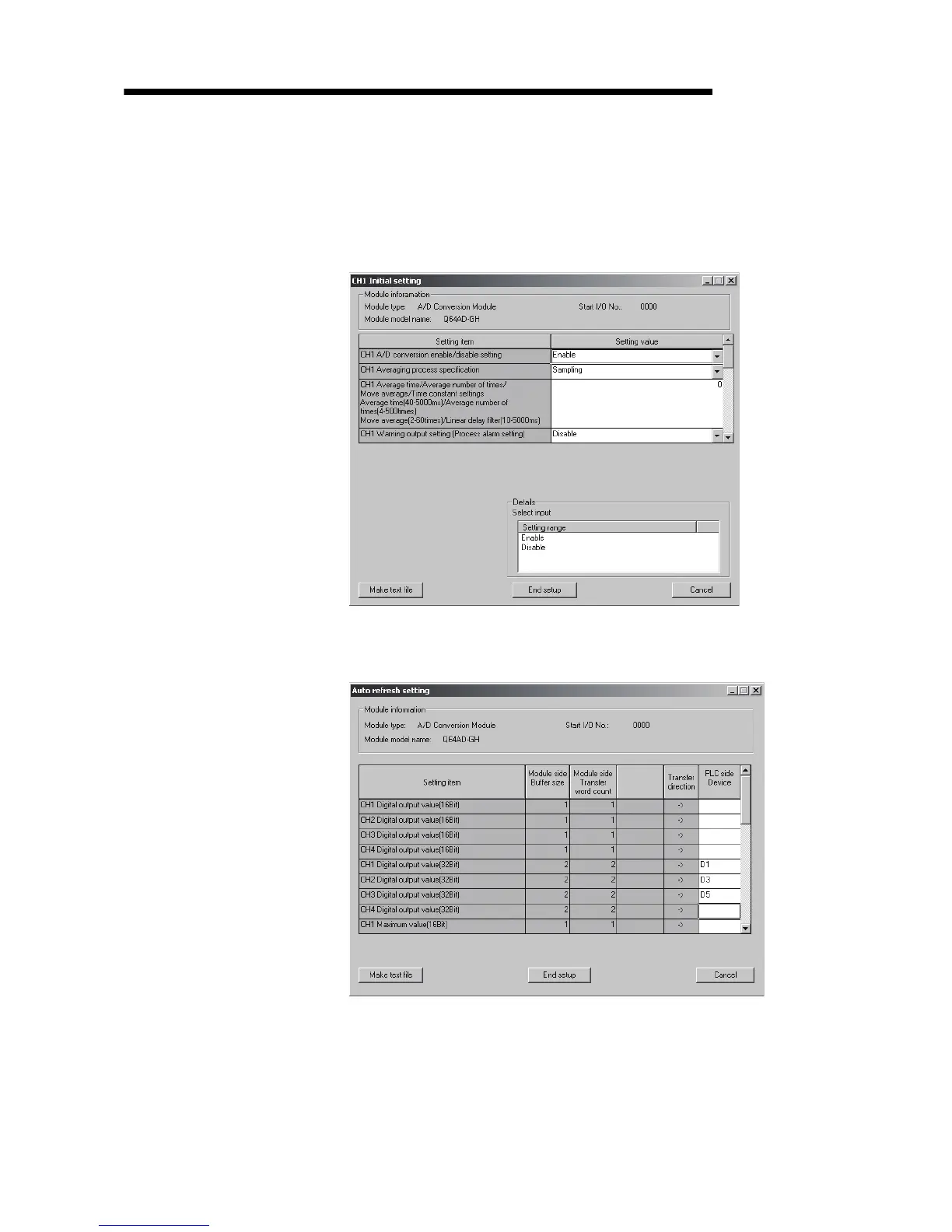

(a) Initial setting (see Section 5.4)
Set the initial settings of CH1 to 3.
Refer to Section 6.2 for the settings.
(b) Auto refresh setting (see Section 5.5)
Set the digital output values, warning output flags, input signal error
detection flags and error codes of CH1 to 3.
(c) Writing the intelligent function module parameters (see Section 5.3.3)
Write the intelligent function module parameters to the CPU module.
This operation is performed using the parameter setting module selection
screen.
