Mitsubishi GX Configurator-AD User Manual

6 - 13 6 - 13
MELSEC-Q
6 PROGRAMMING

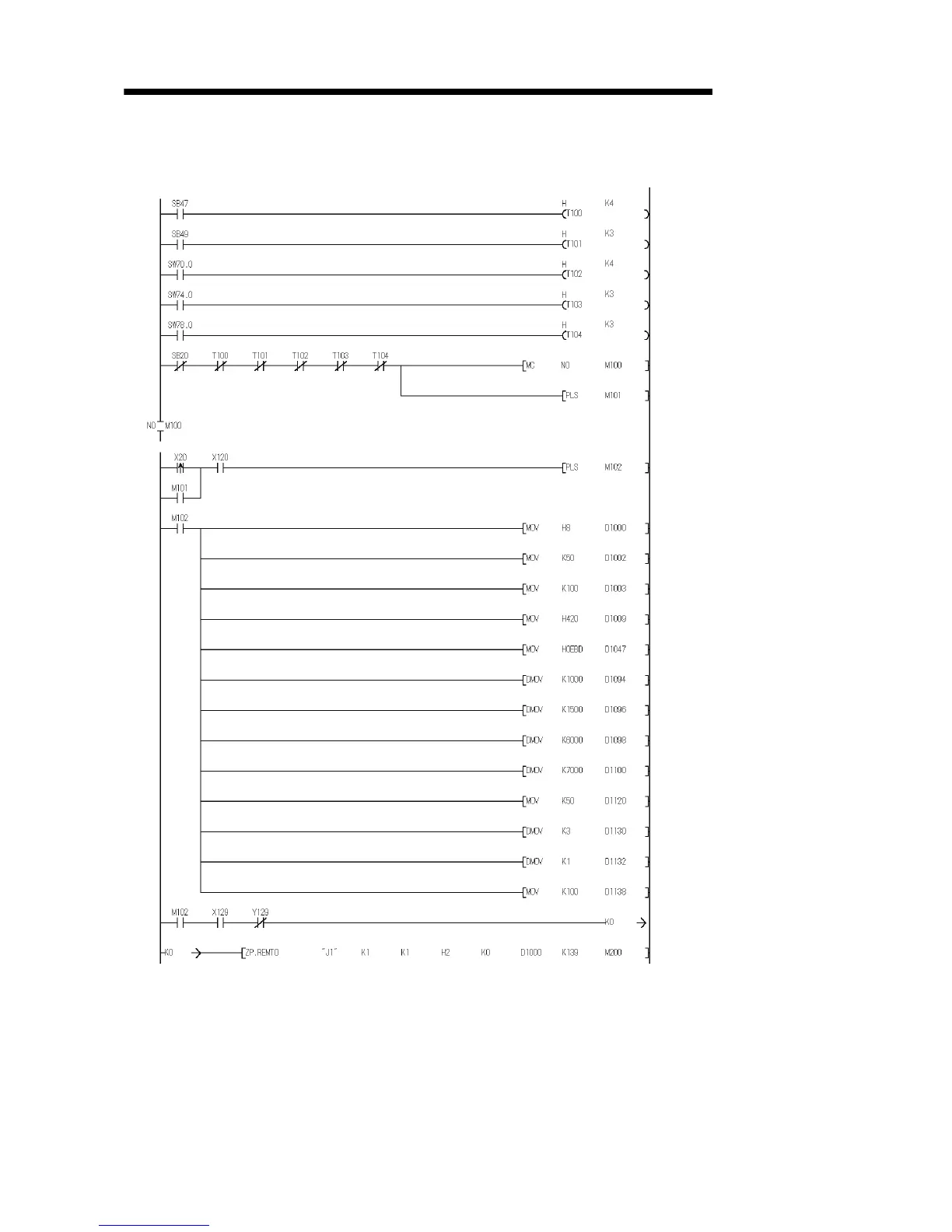

(2) Programming example
A/D conversion enable/disable setting
Averaging process specification
CH2 Average time/
Average number of times/
Move average/Time constant settings
CH3 Average time/
Average number of times/
Move average/Time constant settings
Remote I/O station operating status checking
Initial settings
Master station baton pass status
checking
Master station data link status
checking
Remote I/O station baton pass status
checking
Remote I/O station data link status
checking
Remote I/O parameter communicatio
n
status checking
Master module status checking
Input signal error detection/warning
output settings
CH2 process alarm lower lower limit
value
CH2 process alarm lower upper limit
value
CH2 process alarm upper lower limit
value
CH2 process alarm upper upper limit
value
CH3 rate alarm warning detection
period
CH3 rate alarm upper limit value
CH3 rate alarm lower limit value
CH1 input signal error detection
setting value
Write to buffer memory
