Mitsubishi GX Configurator-AD User Manual

6 - 24 6 - 24
MELSEC-Q
6 PROGRAMMING
Warning (process alarm) occurrence status and processing at warning occurrence
Input signal error detection status and processing at error detection
Error code display and reset processing

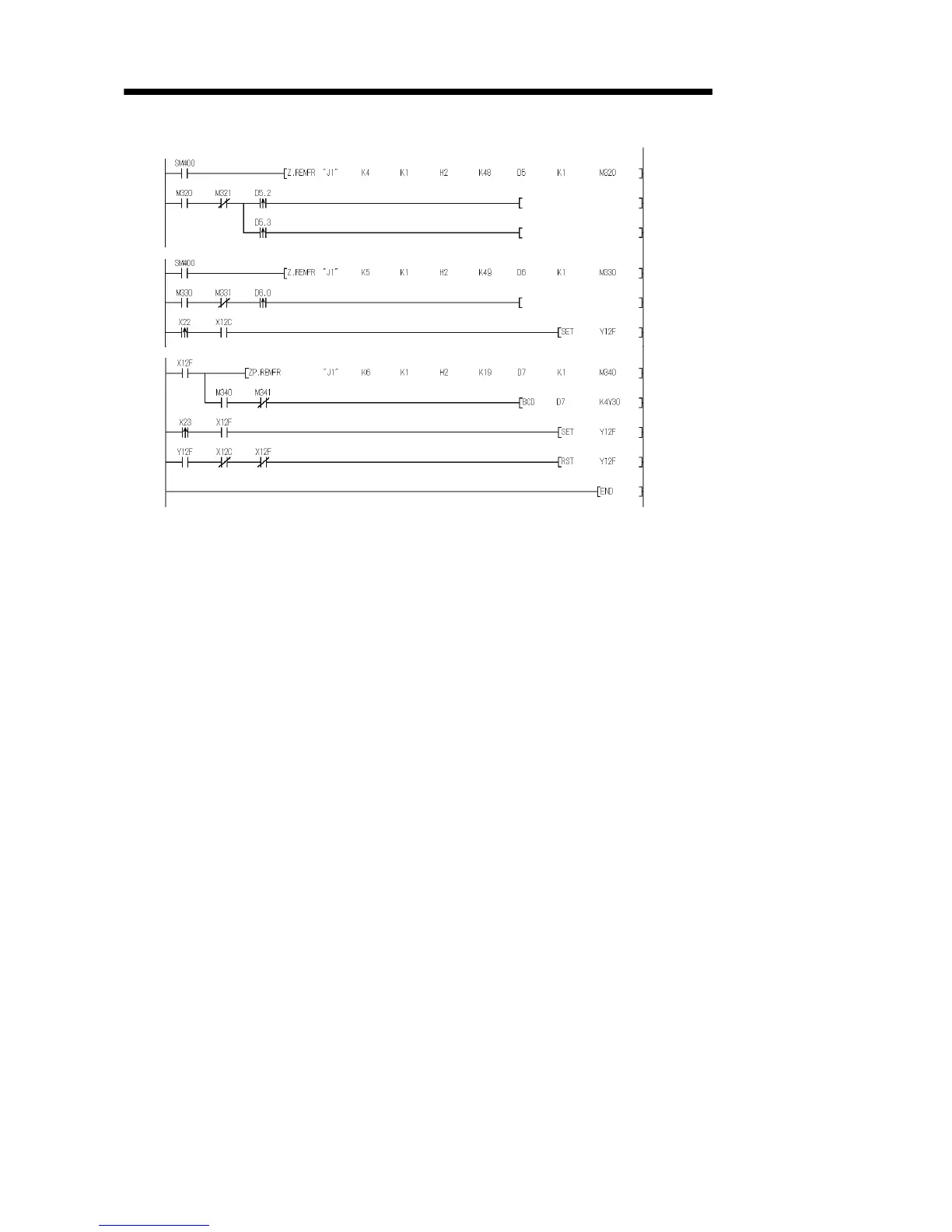

Processing at warning occurrence
Processing at warning occurrence
Processing at error detection
Read the warning output flag.
Processing at CH2 process alarm upper
limit value warning occurrence
Processing at CH2 process alarm lower
limit value warning occurrence
Read the input signal error detection
flag.
Processing at CH1 input signal error
detection
Turn ON the error clear request (YF).
Turn ON the error clear request (YF).
Turn OFF the error clear request (YF).
Output the error code in BCD.
Read the error code
