Mitsubishi GX Configurator-AD User Manual

7 - 28 7 - 28
MELSEC-Q
7 ONLINE MODULE CHANGE
(4) Operation check

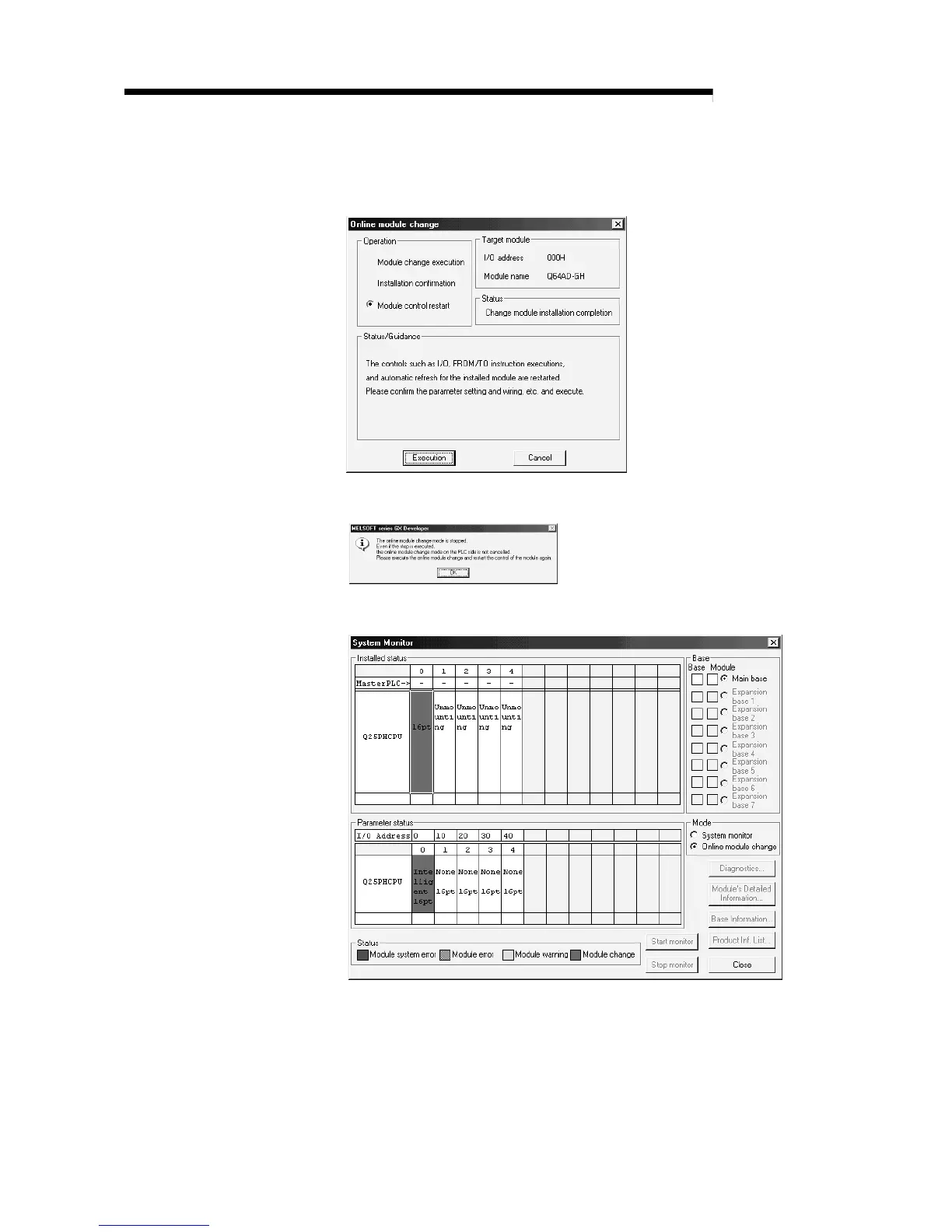

(a) To make an operation check, click the [Cancel] button to cancel control
resumption.
(b) Click the [OK] button to leave the "Online module change" mode.
(c) Click the [Close] button to close the System monitor screen.
(d) Referring to (1), set the used channel to conversion enable, and monitor the
digital output values (buffer memory addresses 11 to 14, 54 to 62, Un\G11
to 14, Un\G54 to 62) to check whether proper conversion has been made
or not.
