8 TROUBLESHOOTING

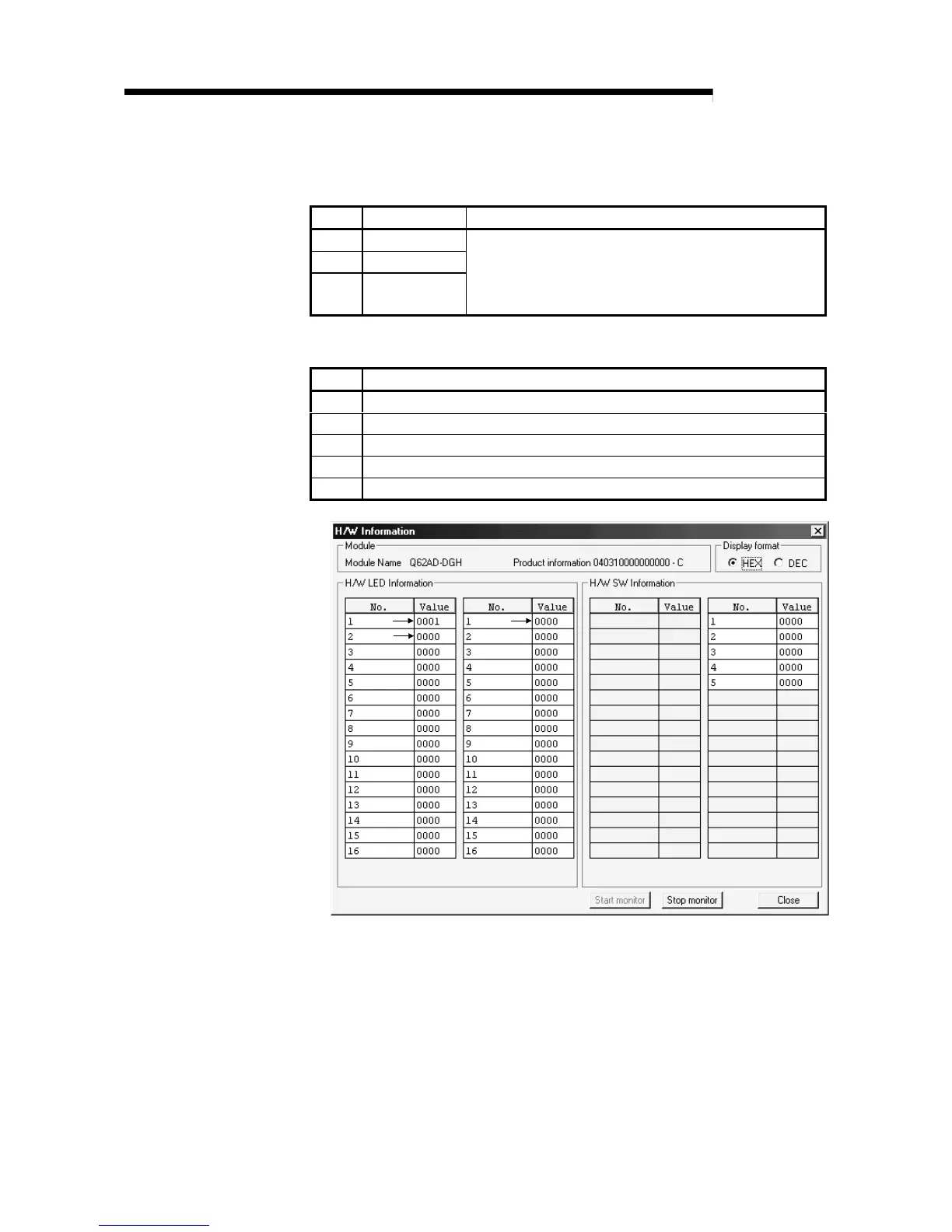

(3) H/W information
(a) H/W LED information
The LED ON status is displayed.
No. LED name Status
1) RUN LED 0000
H
: Indicates that LED is unlit.
2) ERR. LED 0001
H
: Indicates that LED is lit.
3) ALM LED
Alternate display of 0000H and 0001H: Indicates that LED is
flashing.
(b) H/W SW information
The status of the intelligent function module switch setting is displayed.
No. Switch setting for intelligent function module
1Switch 1
2Switch 2
3Switch 3
4Switch 4
5Switch 5
1) 3)
2)
For GX Developer Version 7.13P
