3 SPECIFICATIONS

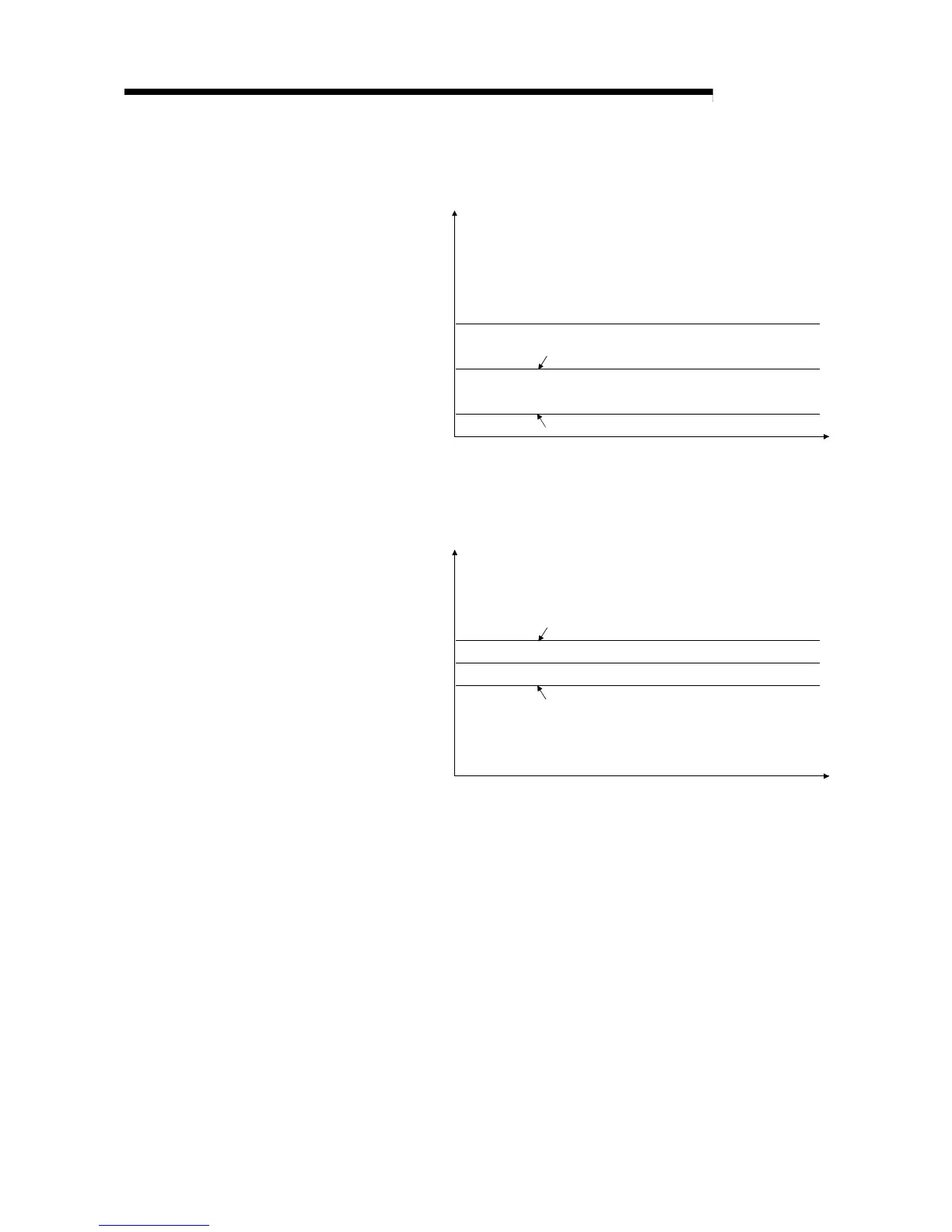

2) Example of setting the rate alarm upper limit value/lower limit value
when it is desired to watch that the digital output value is at the fall rate
within the specified range
-30%
-20%
0
V
arying rate (%) of
digital output value
Rate alarm upper limit value
Rate alarm lower limit value
Time
3) Example of setting the rate alarm upper limit value/lower limit value
when it is desired to watch that the digital output value is at the varying
rate within the specified range
-10%
+10%
0
V
arying rate (%) of
digital output value
Rate alarm upper limit value
Rate alarm lower limit value
Time
