3-97

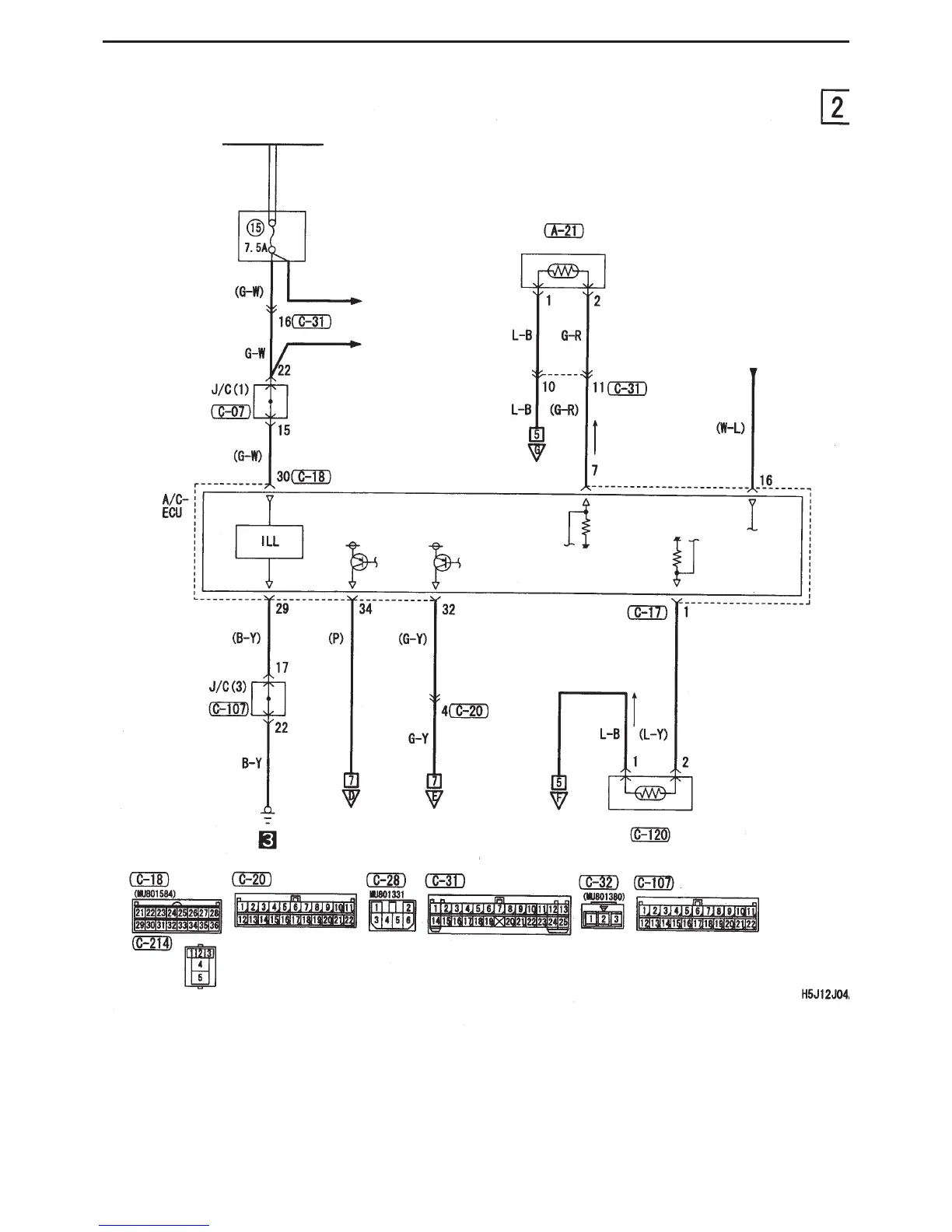

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Front ECU
(tail light relay)
Dedicated
fuse
External air temperature sensor
Demister, door mirror
heating elements
Cabin temperature sensor
Tail lights, position
lights, licence
plate lights,
lighting monitor
warning buzzer
