3-98

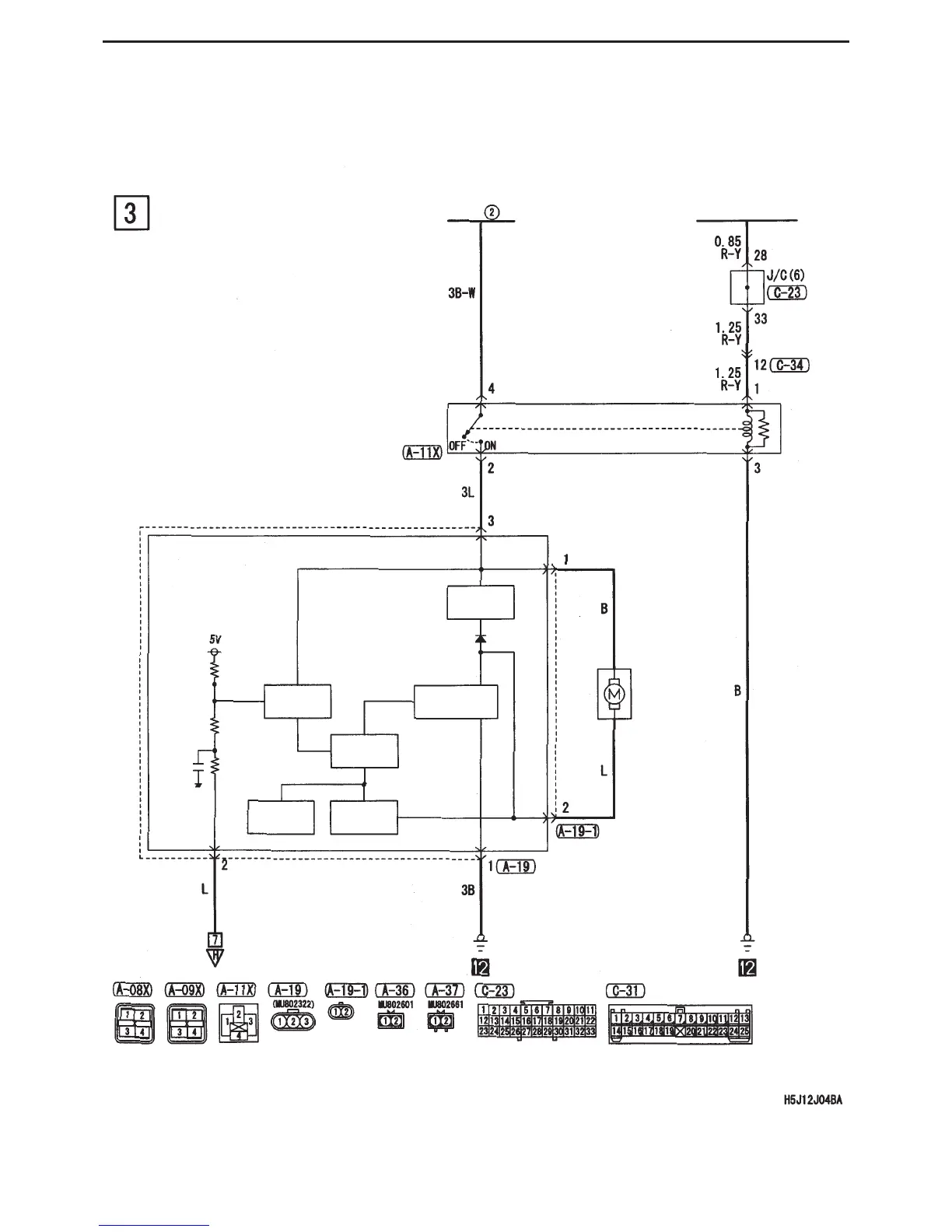

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Fully automatic air-conditioning (cont’d)
Fusible link
Engine control relay
Radiator
fan control
relay
Radiator fan controller
Smoothing
circuit
Field-effect
transistor circuit
Drive
circuit
Input signal
processor
Temperature
detector
Current
detector
Radiator
fan motor
