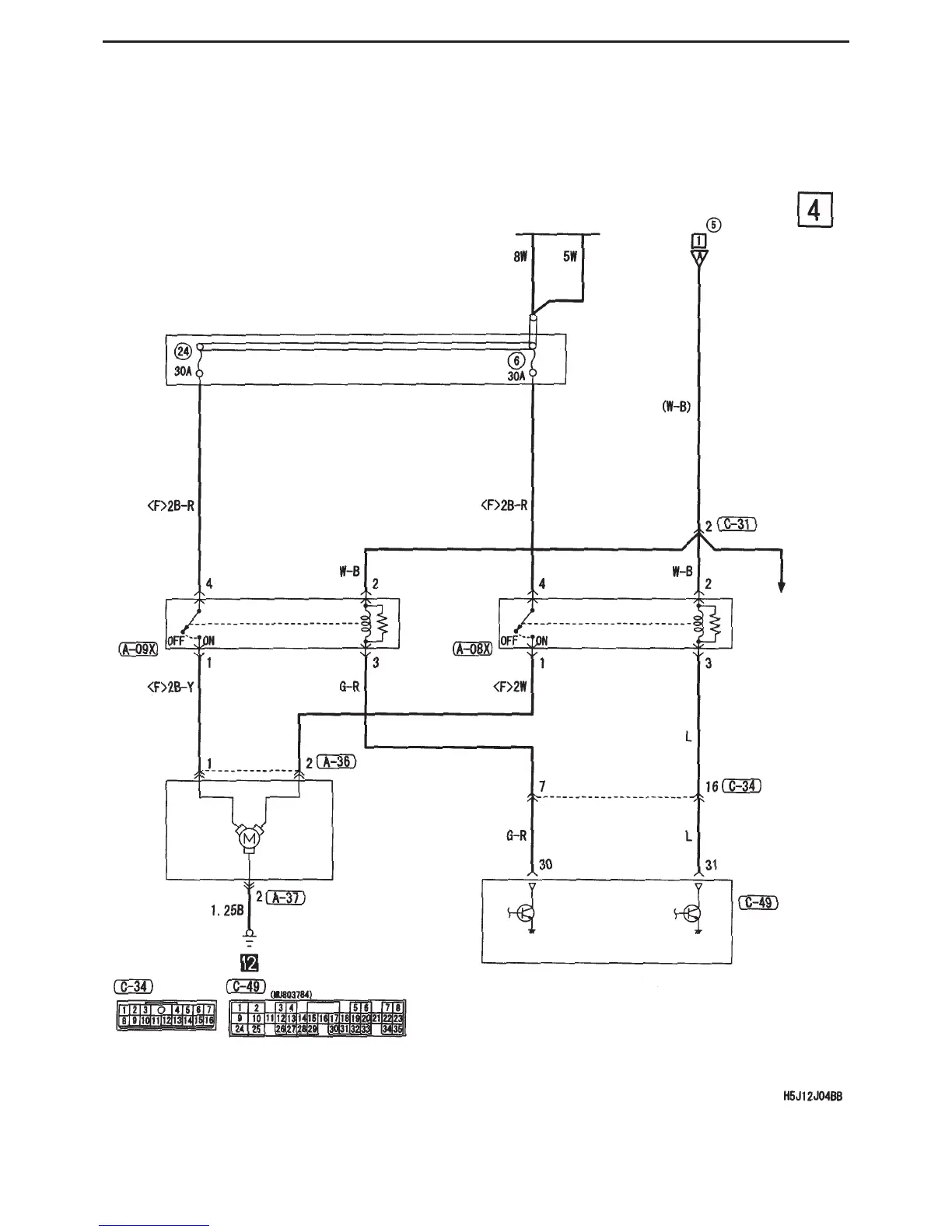

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Battery
Generic
fuse
Dedicated
fuse
Condenser
fan relay (HI)
Condenser
fan relay (LO)
•Windscreen
washer / wiper
•Turn signal lights,
hazard lights
•Tail lights, position
lights, licence
plate lights,
lighting monitor
warning buzzer
• Fog lamps
• Headlights
Engine ECU
Condenser fan motor
J/B
(
)
