3-115

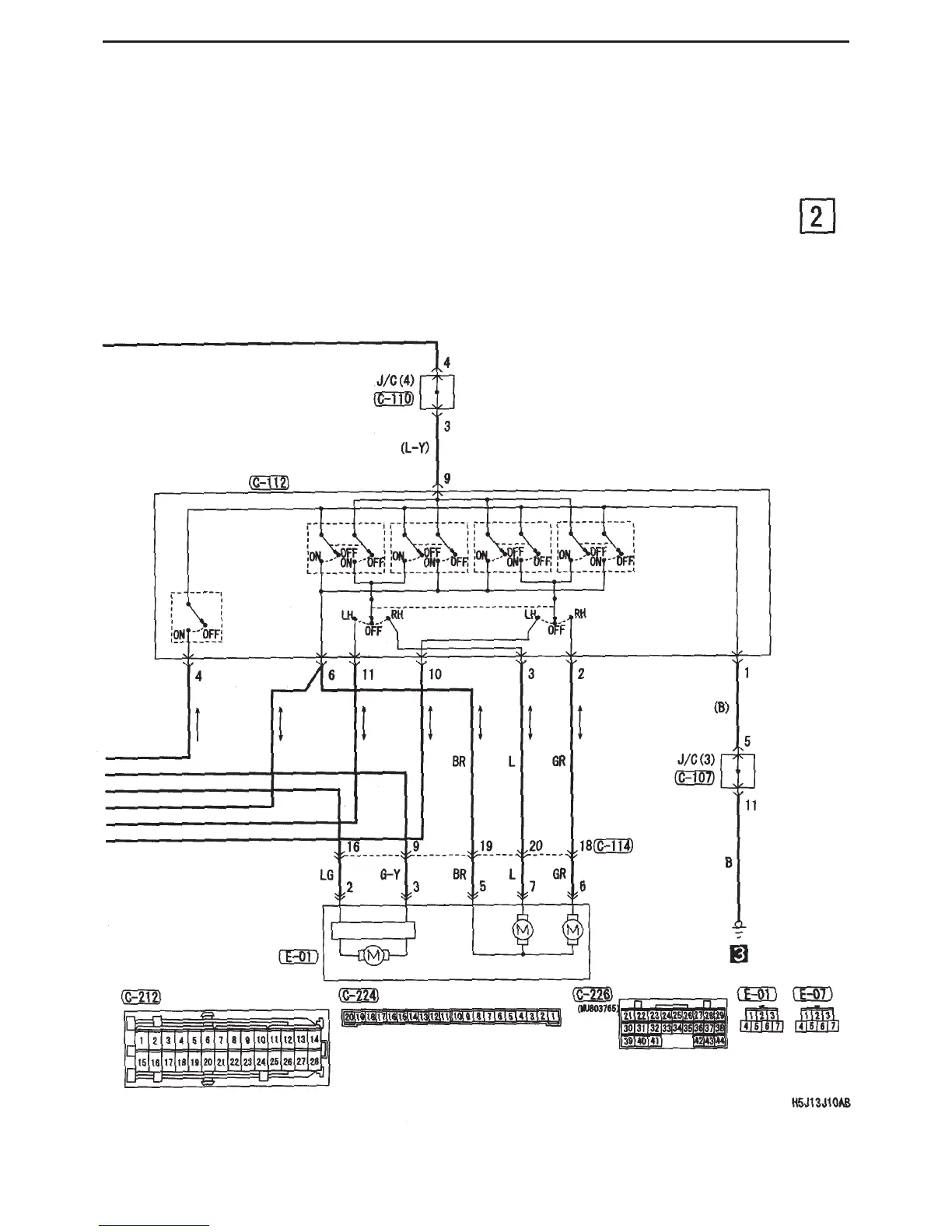

CIRCUIT DIAGRAMS - VISION / SAFETY
Remote control
mirror switch
Stow or
return
Remote control
door mirror (RH)
Return / stow motor
Up/down
motor
Left/right
motor
J/B side connector
Left/right
switch
up
down
left
right
