Mitsubishi Lancer Evolution IX 2005 User Manual

3-116
CIRCUIT DIAGRAMS - VISION / SAFETY
Engine
control

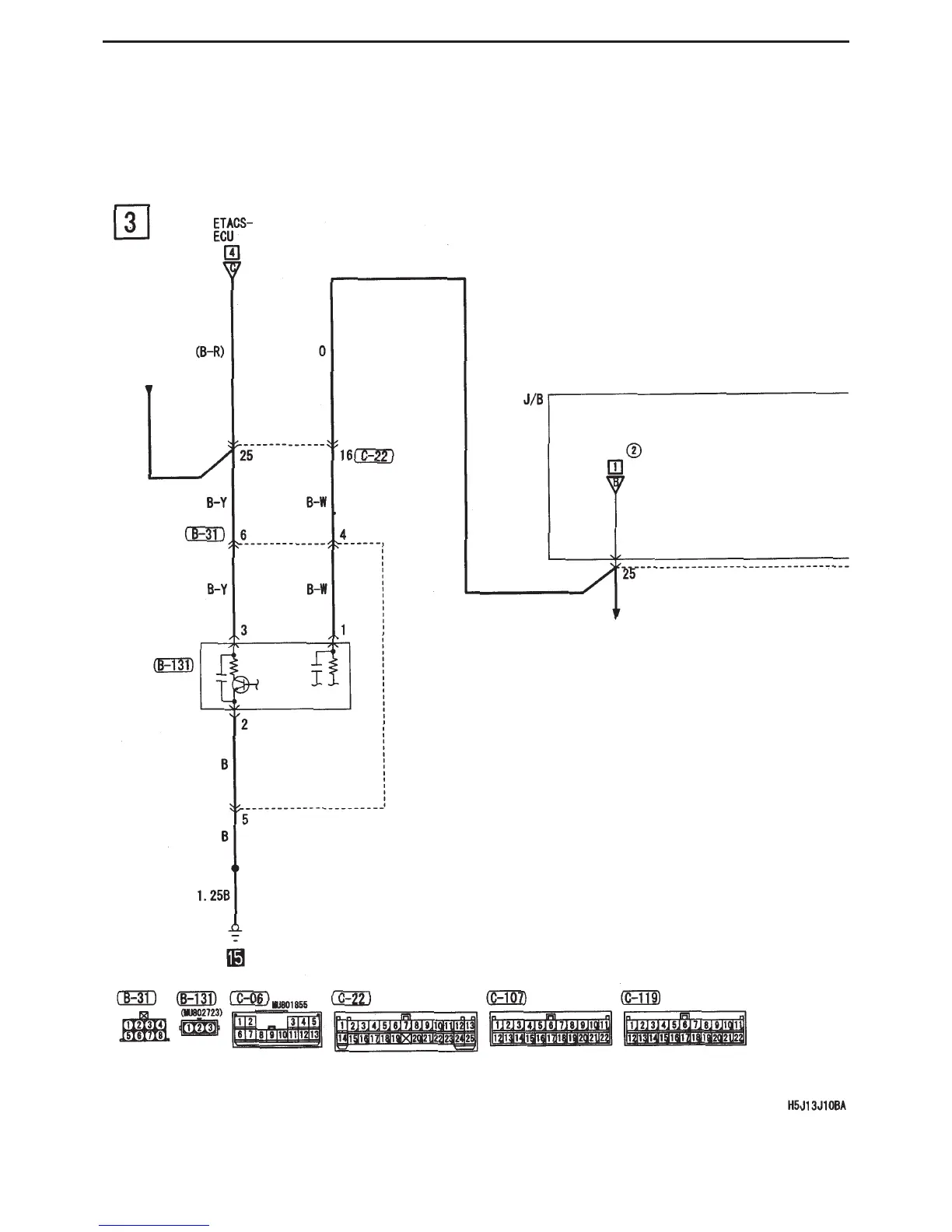

Electric stowable remote control door mirrors (cont.)
Vehicle speed
sensor
J/B
generic
fuse
(
)
• ABS
• ACD, AYC
• ACD (vehicle w/out AYC)
• SRS airbags, seatbelt pre-tensioners
•Intercooler water spray
•Windscreen washer / wiper
•Warning lights
• Engine control
• Needle meters
• Charging
•Turn signal lights, hazard lights
•Tail lights, position lights, licence plate lights,
lighting monitor warning buzzer
• Fog lamps
• Headlights
• Rear washer / wiper
