Mitsubishi Lancer Evolution IX 2005 User Manual

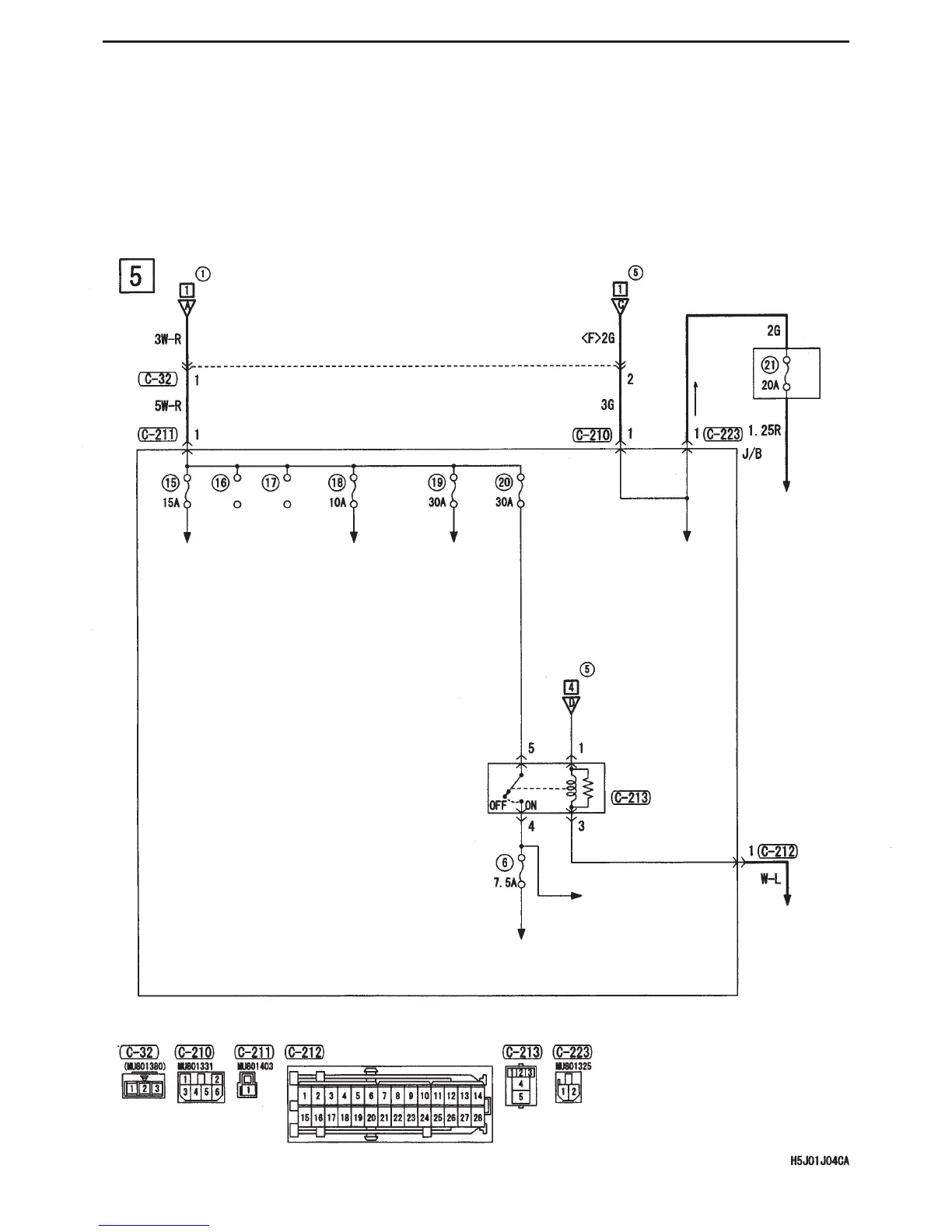

CIRCUIT DIAGRAMS - POWER DISTRIBUTION
3-22
Power distribution (continued)
Fusible
link
Fusible
link
Dedicated
fuse
Sunroof
• Sunroof
• Power
windows
*Heater
* Full auto A/C
*Manual A/C
• ACD (vehicle w/out
AYC)
• ACD, AYC
• Ignition key reminder
buzzer
•Windscreen washer /
wiper
•Warning lights
• Engine control
• Spare audio connector
•Clock
• Sunroof
• Needle meter
•Security alarm
•Central door locking
•Turn signal lights, hazard
lights
•Tail lights, position lights,
licence plate lights,
lighting monitor warning
buzzer
•Electric stowable remote
control door mirrors
• Power windows
•Generic spare connector
• Fog lamps
• Full auto A/C
• Headlights
• Headlight levelling
system
•Rear washer / wiper
•Cabin lights, boot
compartment lights,
ignition key cylinder
illumination light, door
ajar indicator light
• ABS
• ACD (vehicle w/out
AYC)
• ACD, AYC
• SRS airbags, seatbelt
pre-tensioners
• Ignition key reminder
buzzer
•Windscreen washer /
wiper
• Engine immobiliser
system
• Engine control
• Sunroof
•Security alarm
• Central door locking
•Turn signal lights,
hazard lights
•Tail lights, position
lights, licence plate
lights, lighting monitor
warning buzzer
•Electric stowable
remote control door
mirrors
• Power windows
• Fog lamps
• Full auto A/C
• Headlights
• Rear washer / wiper
•Cabin lights, boot
compartment lights,
ignition key cylinder
illumination light, door
ajar indicator light
(
)
Generic
fuse
J/B
Demister
relay
Demister, door mirror
heating elements
(vehicle with full auto A/C)
•Demister (vehicle
w/out full auto A/C)
• Demister, door
mirror heating
elements (vehicle
with full auto A/C)
•Demister (vehicle
w/out full auto A/C)
• Demister, door mirror
heating elements
(vehicle with full auto
A/C)
