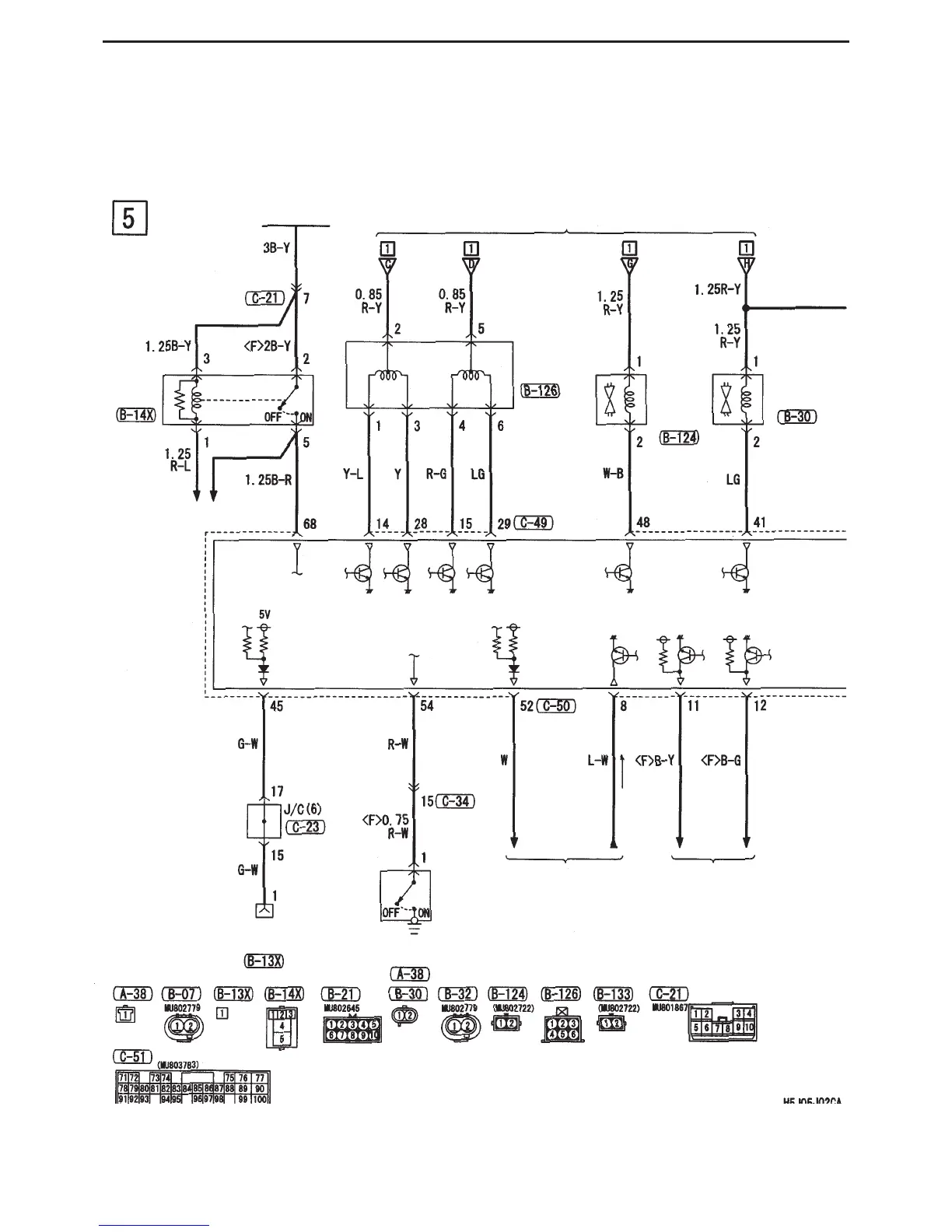

CIRCUIT DIAGRAMS - ENGINE CONTROL SYSTEM
3-32
Engine control system (continued)
Ignition
switch (ST)
Starter
relay
Idle speed
control
servo
Fuel
pressure
solenoid
valve
Waste gate
solenoid
valve 1
Engine ECU
Power steering fluid
pressure switch
Engine speed
detection connector
Engine control relay
