Mitsubishi Lancer Evolution IX 2005 User Manual

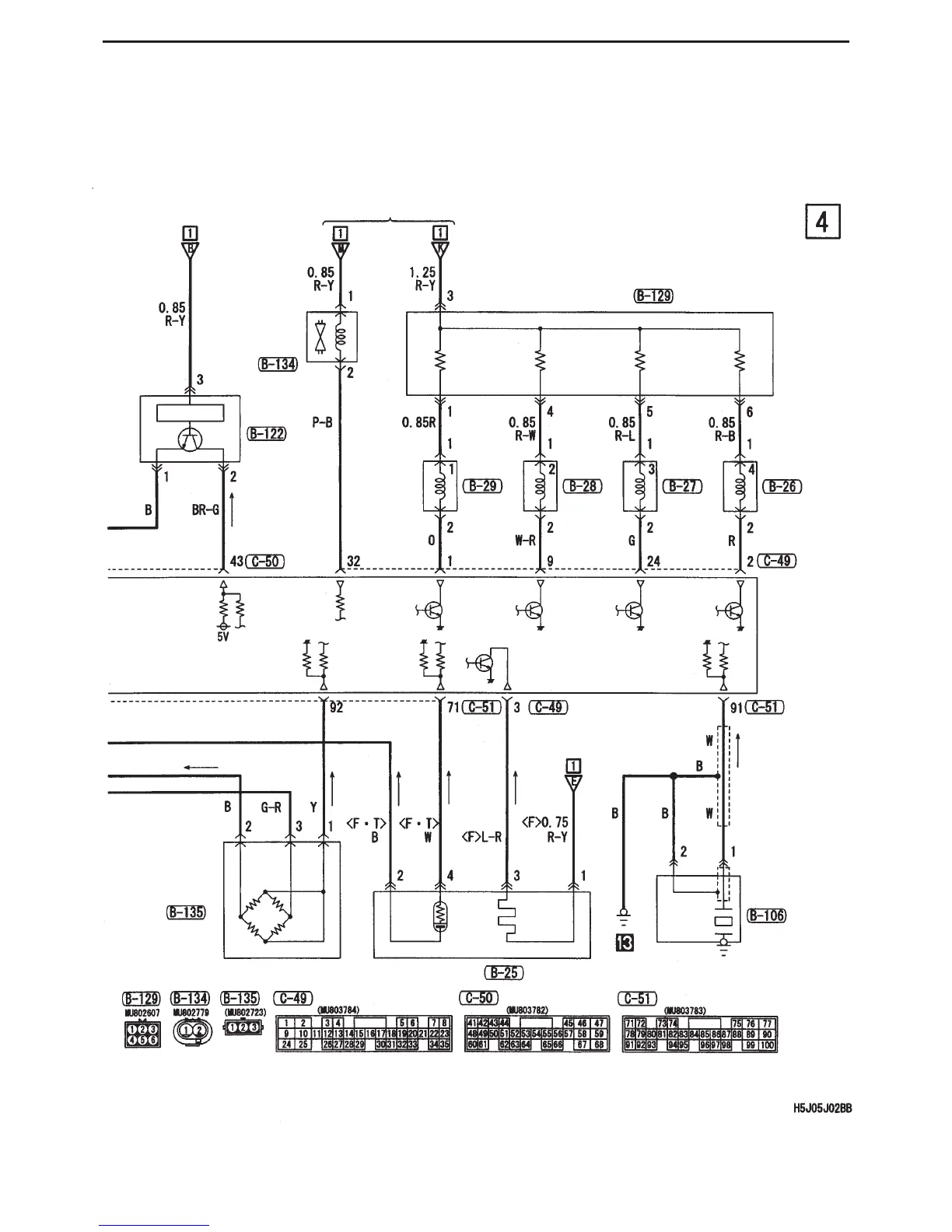

CIRCUIT DIAGRAMS - ENGINE CONTROL SYSTEM
3-31
Engine
control relay
Oil feed
control
valve
Crank
angle
sensor
Register (for injectors)
Injector
Injector Injector Injector
Engine
control relay
Knock
sensor
O
2
sensor
Manifold
absolute
pressure
sensor
J/C (6)
(Engine control relay)
