3-73

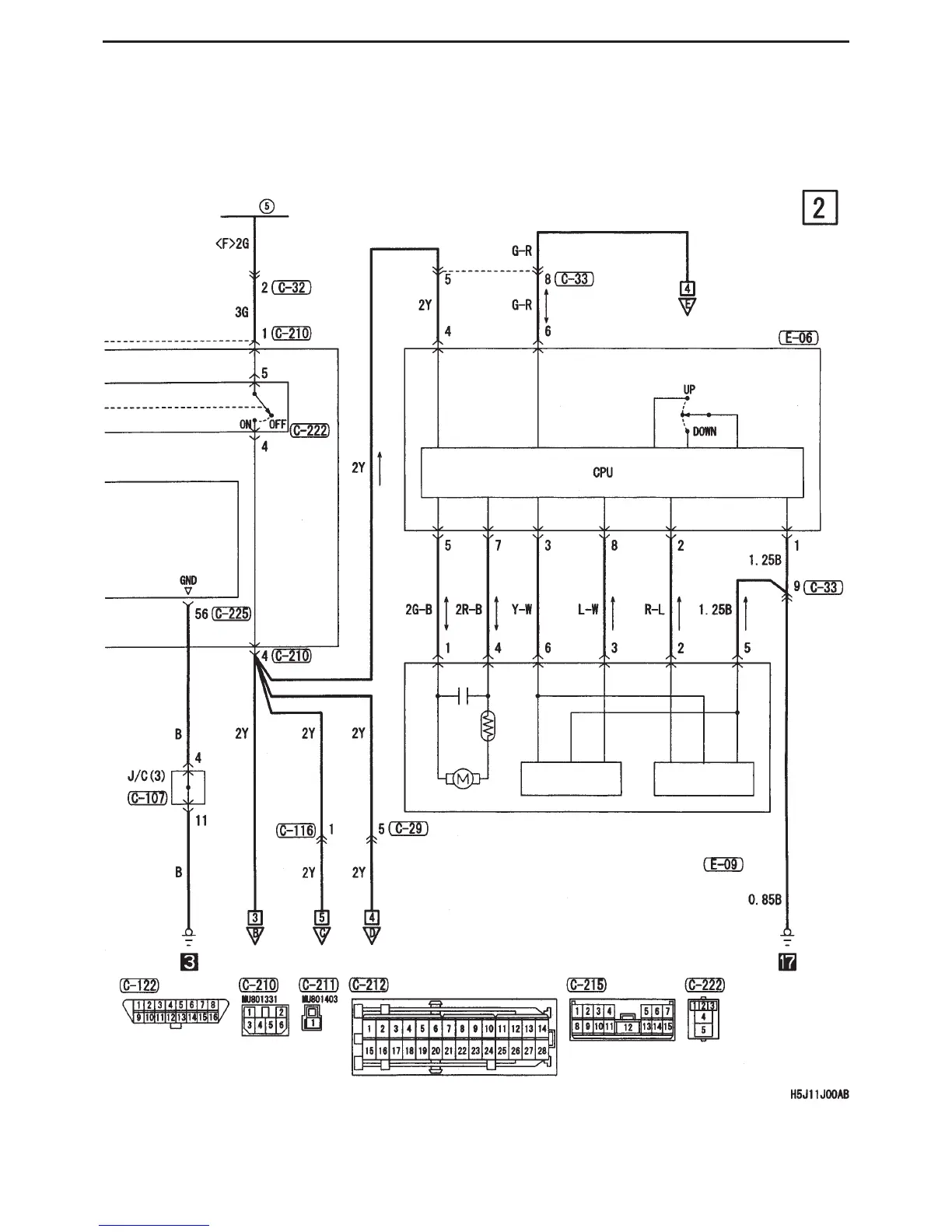

CIRCUIT DIAGRAMS - DOOR OPENING / CLOSING CONTROL
Fusible link
Power
window
relay
Power
window
sub-switch
(Front : LH)
Power window
motor (front : LH)
Front side
Hall IC
Hall IC
