Mitsubishi Lancer Evolution IX 2005 - Page 77

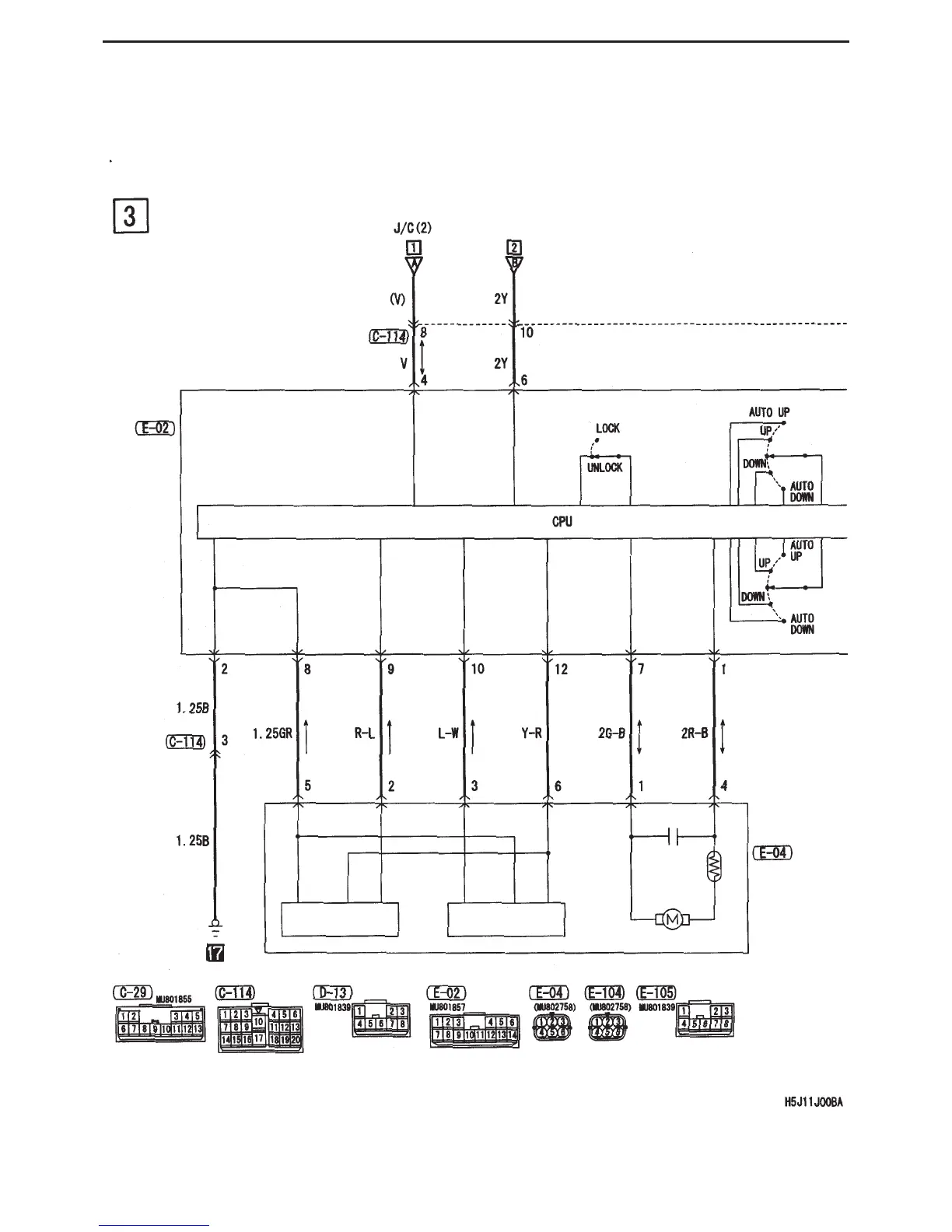

CIRCUIT DIAGRAMS - DOOR OPENING / CLOSING CONTROL
Power windows (cont’d)
Power window motor
(front : RH)
(Front : LH)
(Front :RH)
Lock switch
Power window
main switch
Power window relay
Hall IC
Hall IC
