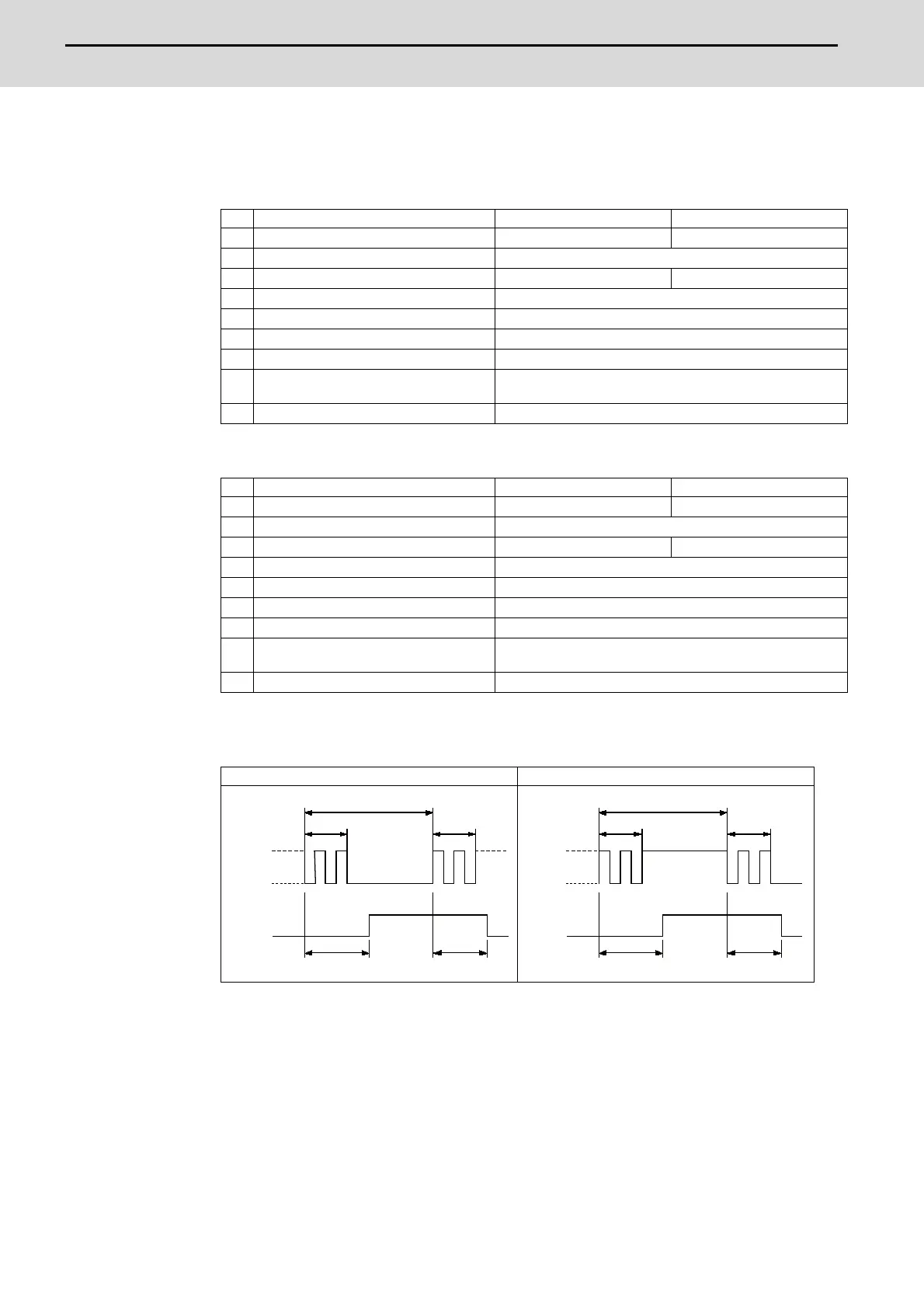

Input conditions
The input signals must be used within the following condition ranges.
[FCU8-DX731 / FCU8-DX750 / FCU8-DX760 / FCU8-DX761]
[FCU8-DX834]
(*1) Note that "40 ms or more" is a guide of the "Input signal holding time". The input signal is
recognized only when its "ON" state is held longer than the ladder processing cycle time.
(E) : External signal, (I):Internal signal
(Note) Set the number of DI points that are simultaneously turned ON to be less than half of the total
points.
If many points are set to be simultaneously turned ON, operation panel I/O unit may be
deteriorated due to the heat.
24V common 0V common
1 Input voltage at external contact ON 6V or less 18V or more, 25.2V or less
2 Input current at external contact ON 5mA or more
3 Input voltage at external contact OFF 20V or more, 25.2V or less 4V or less
4 Input current at external contact OFF 1.2mA or less
5 Input resistance 3.3kΩ
6 Tolerable chattering time (T1) 3ms
7 Input signal holding time (T2) 40ms or more (*1)
8
Input circuit operation delay time
(T3 and T4)
3 to 16ms
9 Machine side contact capacity 30V or more, 16mA or more
24V common 0V common
1 Input voltage at external contact ON 6V or less 18V or more, 25.2V or less
2 Input current at external contact ON 3mA or more
3 Input voltage at external contact OFF 20.2V or more, 25.2V or less 3.8V or less
4 Input current at external contact OFF 0.7mA or less
5 Input resistance 5kΩ
6 Tolerable chattering time (T1) 3ms
7 Input signal holding time (T2) 40ms or more (*1)
8
Input circuit operation delay time
(T3 and T4)
3 to 16ms
9 Machine side contact capacity 30V or more, 16mA or more
Connection to 24V common input Connection to 0V common input
T1T1
T2
GND
+24V
T4T3
(E)
(I)
