4 General Specifications
124
IB-1501269-J
(Note 2) When the rush current exceeds the maximum output current, always connect a protective
resistor (R=150Ω) serially to the load to suppress rush currents. Make sure that the current is
less than the maximum output current including the momentary current.
(Note 3) Always keep the total sum of output current of each Y00 to Y07, Y08 to Y0F, Y10 to Y17, Y18
to Y1F, Y20 to Y27, and Y28 to Y2F less than 0.8A.
CAUTION
1. When using an inductive load such as a relay, always connect a diode in parallel to the load to prevent a
counter-electromotive force.
2. When the rush current exceeds the maximum output current, always connect a protective resistor serially to
the load to suppress rush currents.

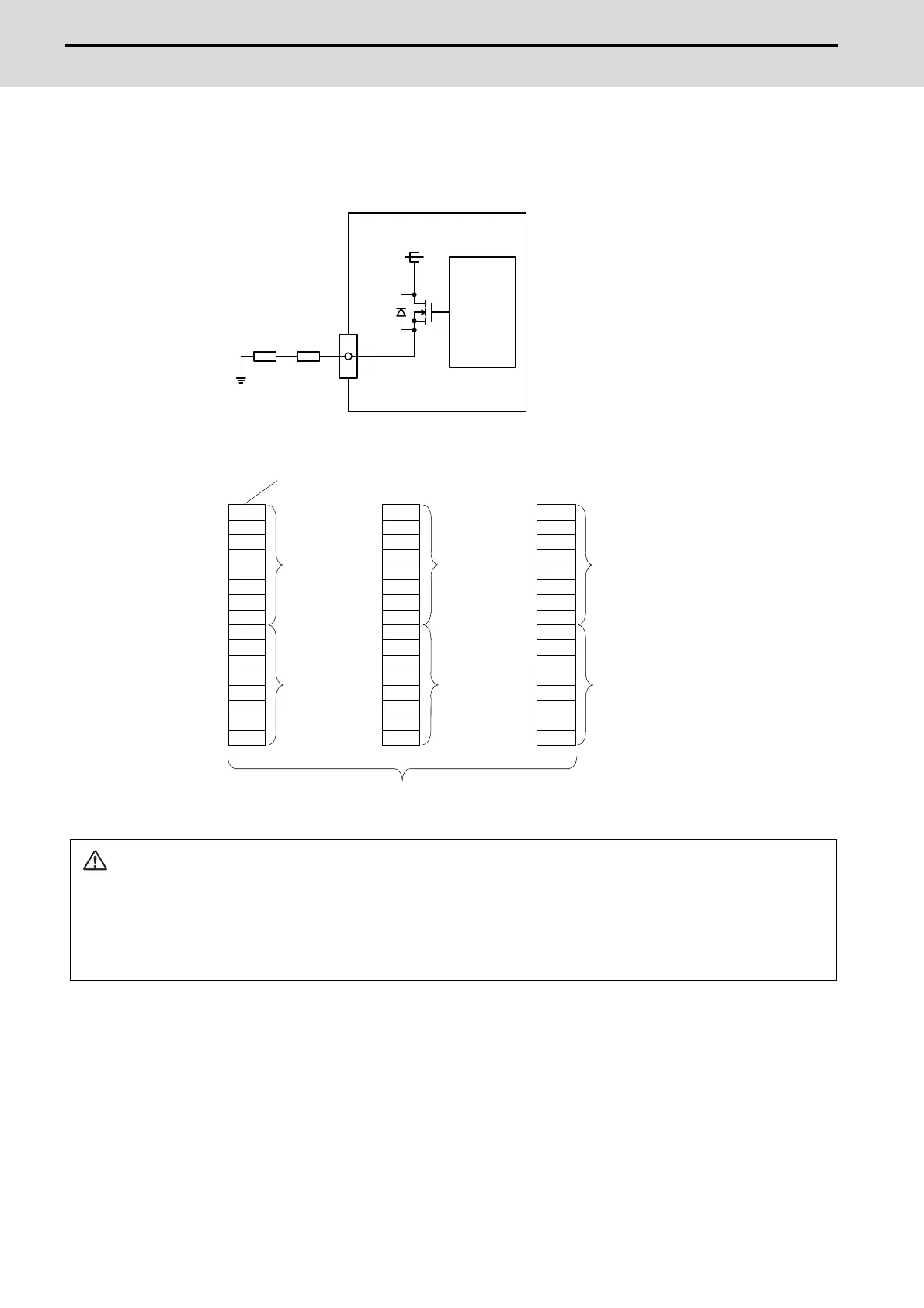

Y
24VDC
Source output
Control
circuit
Load Resistor
Y00
Y01
Y02
Y03
Y04
Y05
Y06
Y07
Y08
Y09
Y0A
Y0B
Y0C
Y0D
Y0E
Y0F
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
Y1A
Y1B
Y1C
Y1D
Y1E
Y1F
Y20
Y21
Y22
Y23
Y24
Y25
Y26
Y27
Y28
Y29
Y2A
Y2B
Y2C
Y2D
Y2E
Y2F
Total 0.8A
or less
Total 0.8A
or less
Total 0.8A
or less
Total 0.8A
or less
Total 0.8A
or less
Total 0.8A
or less
Total 3.2A or less
0.2A or less per point
