M800S/M80/E80 Series Connection and Setup Manual

4 General Specifications

125

IB-1501269-J

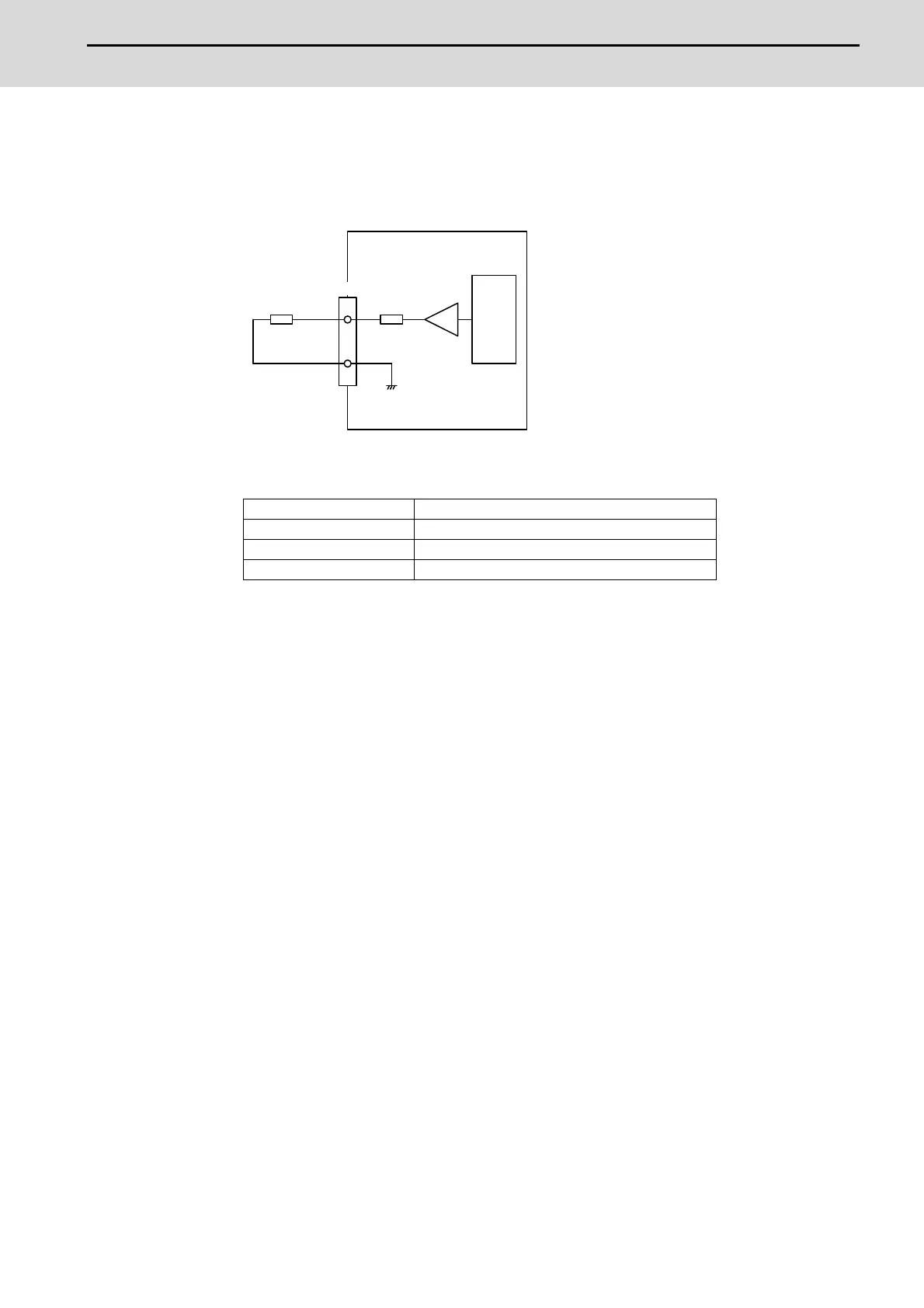

(b) Outline of analog signal output circuit

The analog signal output circuit can be used only for FCU8-DX231.

Output circuit

Output conditions

Analog output voltage -10 to 10V(±5%)

Resolution 10V / 4095 = 2.44mV

Load conditions External load resistance value 10kΩ or more

Output resistance value 500Ω

DAC

CJ34

AO*

500ΩLoad
