M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
126
IB-1501269-J

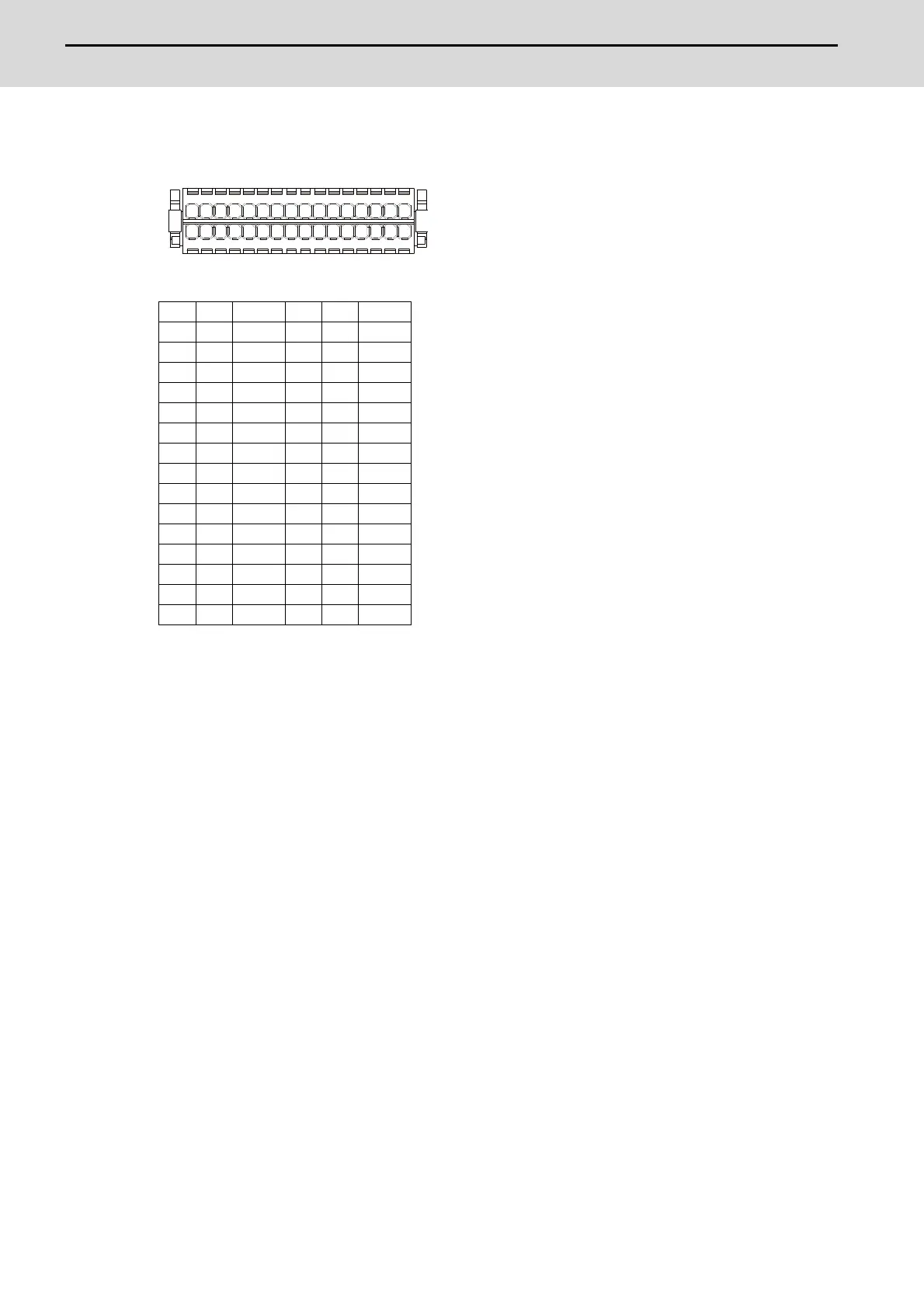

(5) CJ35 (Machine signal input)
<Cable side connector type>
Connector : 713-1116/037-000
Recommended manufacturer : WAGO
(The cable side connector is attached to the unit.)
16 IX0F 32 COMB+
15 IX0E 31 COMA+
14 IX0D 30 COMB+
13 IX0C 29 COMA+
12 IX0B 28 COMB+
11 IX0A 27 COMA+
10 IX09 26 COMB+
9 IX08 25 COMA+
8 IX07 24 COMB+
7 IX06 23 COMA+
6 IX05 22 COMB+
5 IX04 21 COMA+
4 IX03 20 COMB+
3 IX02 19 COMA+
2 IX01 18 COMB+
1 IX00 17 COMA+
161
17 32
