1General configuration
Contents of the structural equipment
1-3
1.2.2 Controller
The devices shown below can be installed on the controller.

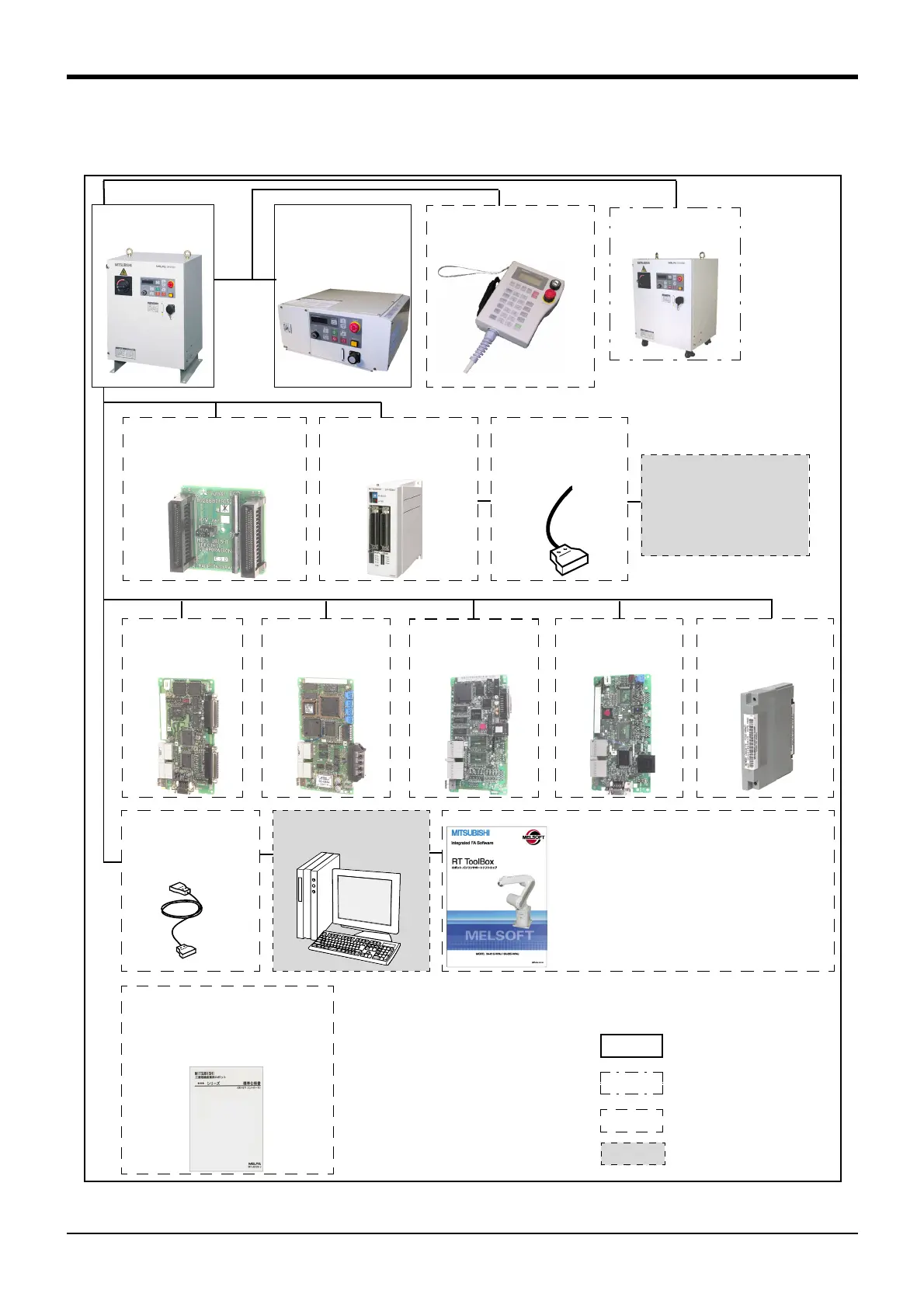

Fig.1-2 ： Structural equipment(Controller)
*2) *3）
Controller
・ CR3-535M
Pneumatic hand interface
・ 2A-RZ365 (Sink)
・ 2A-RZ375 (Source)
Personal computer
cable
・RS-MAXY-CBL
Teaching pendant (T/B)
・R28TB
Parallel I/O unit
・ 2A-RZ361 (Sink)
・ 2A-RZ371 (Source)
External I/O cable
・ 2A-CBL05 (5m)
・ 2A-CBL15 (15m)
Personal computer
Prepared by customer
Personal computer support software
･ 3A-01C-WINE(CD-ROM)
(MS-Windows95/98/2000/NT4.0/Me/XP)
Personal computer support software mini
･ 3A-02C-WINE(CD-ROM)
(MS-Windows95/98/2000/NT4.0/Me/XP)
Extension memory
cassette
・2A-HR432
PLC(Programmable
Logic Controller)
External device
Prepared by customer
Controller
・ CR2B-574
*2) There are some restrictions on the
number of optional interfaces and
their combinations.
Refer to the separate "Controller
setup, basic operation, and main
-
tenance" for details.
*1)
Instruction Manual
(bound edition)
・ 4S-MAP-102(for CR2B-574)
・ 4S-MAP-105(for CR3-535M)
*2) *2)
Extended serial
interface
・ 2A-RZ581-E
CC-Link interface
・ 2A-HR575-E
Ethernet interface
・2A-HR533
Ethernet interface
・ 2A-HR533-E
Additional axis
interface
・ 2A-RZ541-E
*2)
*3) As the CR3-535M controller is
equipped with the additional axis
function as standard, it is not nec
-
essary to use this option.
Caster type con
-
troller
*1) Choose either a CR3 or
CR2B controller that is
suited to your application.
［Caution］
Standard configuration
Special shipping
Option
equipment
specifications
Prepared by customer
To Next Page
