3-44
Outside dimensions/In
stallation dimensions
3Controller

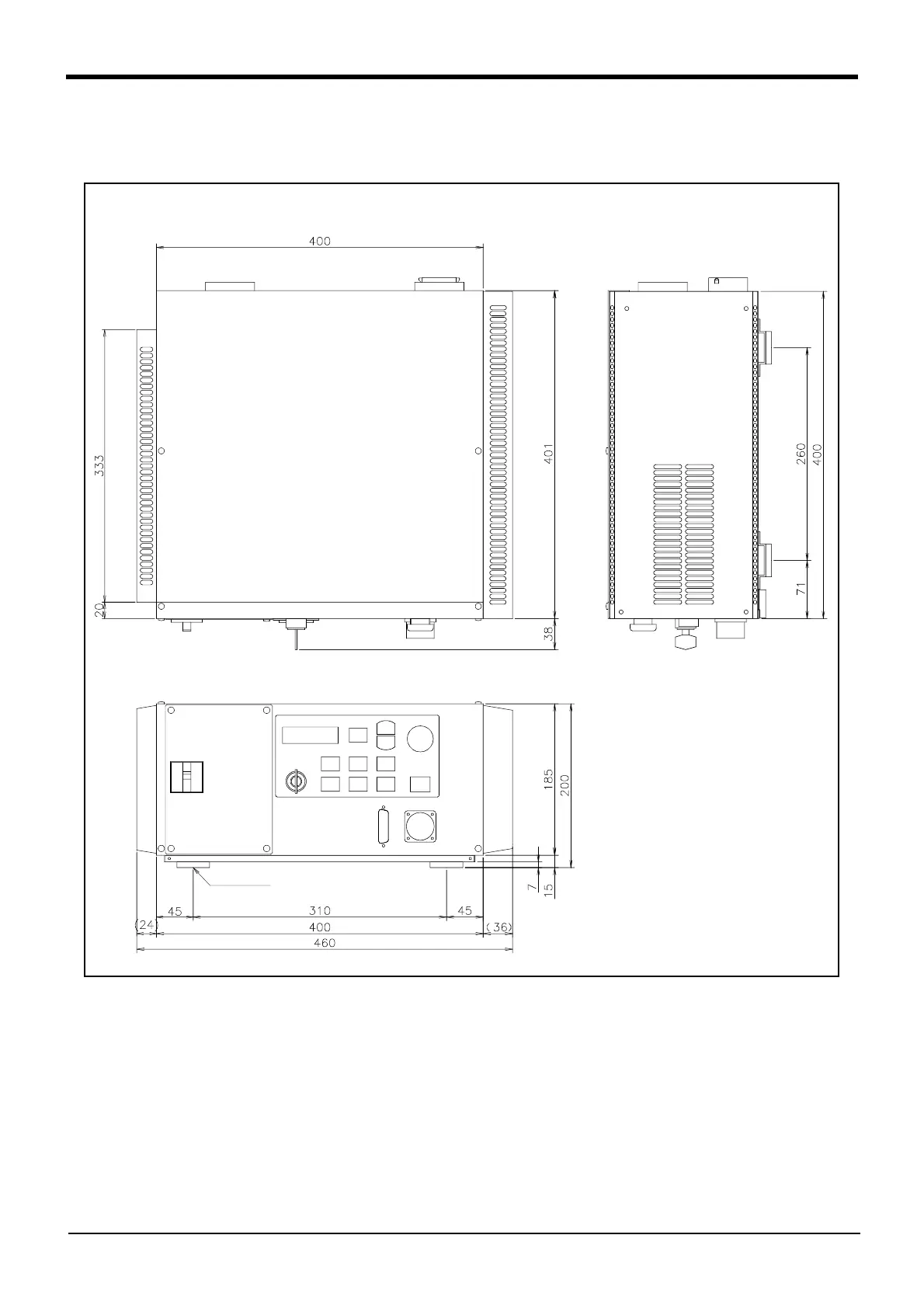

3.3 Outside dimensions/Installation dimensions
3.3.1 Outside dimensions
Fig.3-4
：
Outside dimensions of co
ntroller (CR2B-574 controll
er)
<CR2B-574>
4-M5 screw
52
54
