Mitsubishi MELFA RV-6S Series User Manual

3Controller
Names of each part
3-43

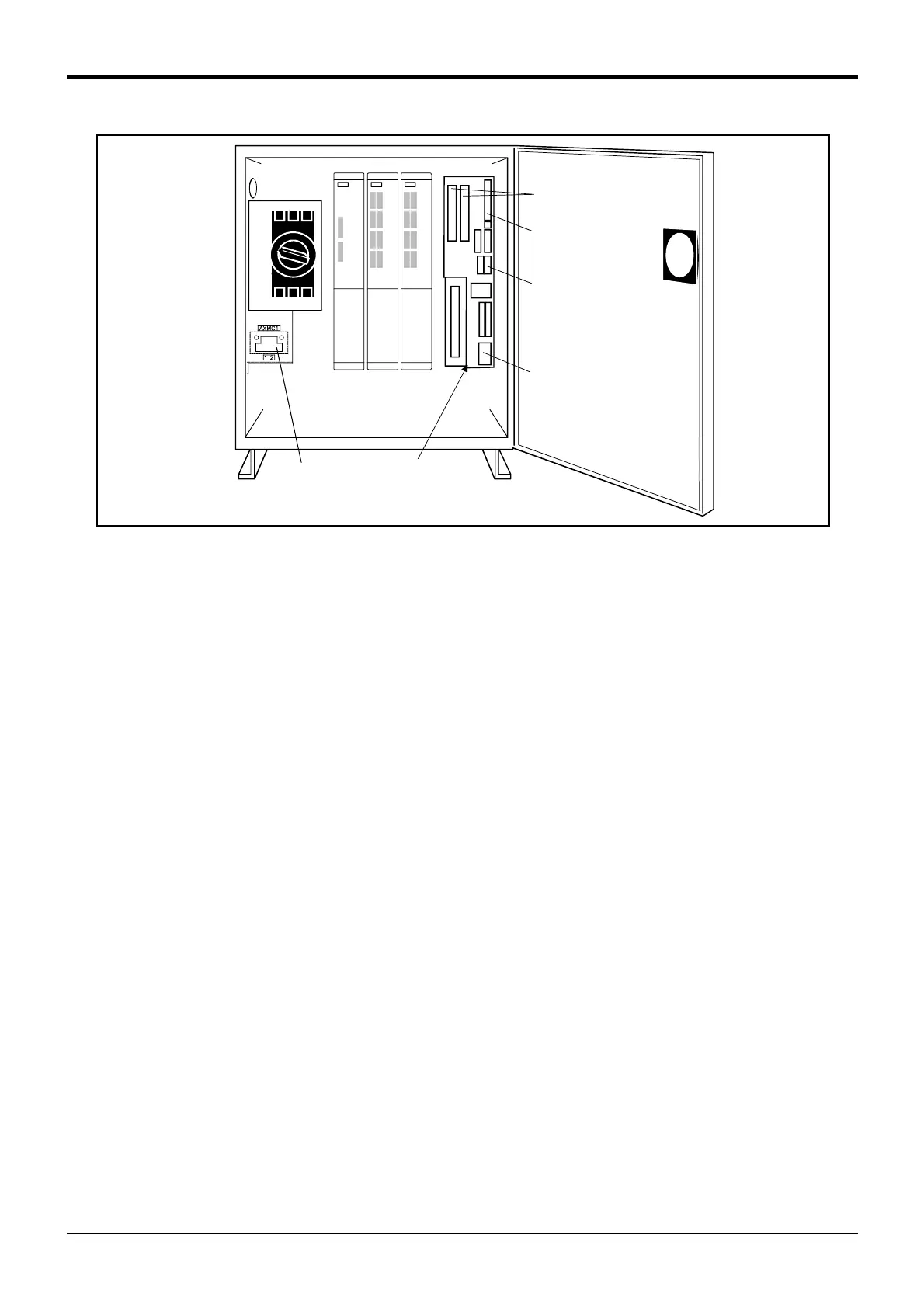

Fig.3-3 ： Names of each controller part (interior)(CR3-535M controller)
1) External input/output signal connector.
2) Memory cassette entry
3) Network cable connector for parallel I/O unit expansion.
4) Emergency stop switch and door switch terminals.
5) Magnet contactor control connector for additional axis (AXMC1)
Control unit
(R6x2CPU)
1)
2)
4)
3)
5)
