Mitsubishi MELFA RV-6S Series - Personal Computer Cable

3Controller
Options
3-83

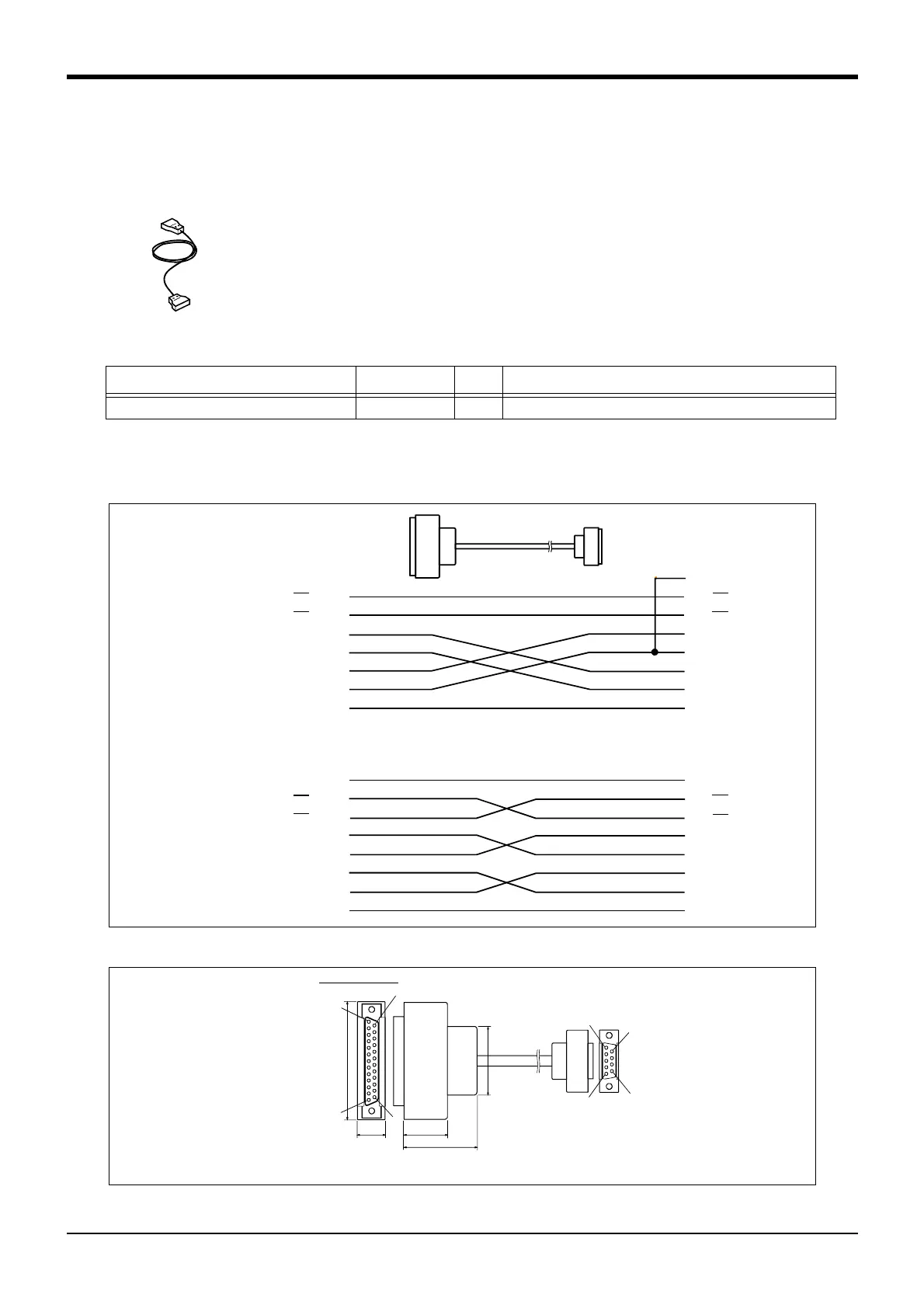

(5) Personal computer cable
■ Order type: ● For PC/AT ： RS-MAXY-CBL
■ Outline
This is the RS-232C interface cable used for connecting the controller with a personal
computer. The personal computer on hand may be usable with the above interface cable.
Confirm the connection specifications when placing an order.
Personal computer cables for the PC/AT compatible model is available.
The cable for the NEC PC9821 (half-pitch 14-pin) must be manufactured by the customer.
■ Configuration
Table 3-25 ： Configuration device
■ Specifications
Fig.3-33 ： Personal computer cabe connection
Fig.3-34 ： Personal computer cabe connector
Part name Type Qty. Remarks
Personal computer cable (for PC/AT) RS-MAXY-CBL 1pc.
3m, D-SUB 9 pin
Note1)
Note1)The personal computer cable is the same as that for use with "Movemaster M1/M2/E/EN series".
Controller side
(Signal name, pin No.)
Personal computer side
(Signal name, pin No.)
(FG) 1
(SD) 2
(RD) 3
(RS) 4
(CS) 5
(DR) 6
(ER)20
(SG) 7
1 (CD)
2 (RD)
3 (SD)
4 (DTR)
6 (DSR)
8 (CTS)
7 (RTS)
5 (GND)
(FG) 1
(SD) 2
(RD) 3
(RS) 4
(CS) 5
(DR) 6
(ER)20
(SG) 7
1 (FG)
2 (SD)
3 (RD)
4 (RS)
5 (CS)
6 (DR)
20 (ER)
7 (SG)
Controller side
(Signal name, pin No.)
Personal computer side
25 pin connector
(Signal name, pin No.)
RS-MAXY-CBL
（1） For PC/AT
（2） For PC98
RS-MAXY-CBL
54
15
15
39
31
1
13
25
14
Robot side
P/C side
T
yp
e:17JE-23250-02(D8A6)-CG (DDK)
1
6
9
5
