(f) L series 32-point intelligent function module
.
Set Data

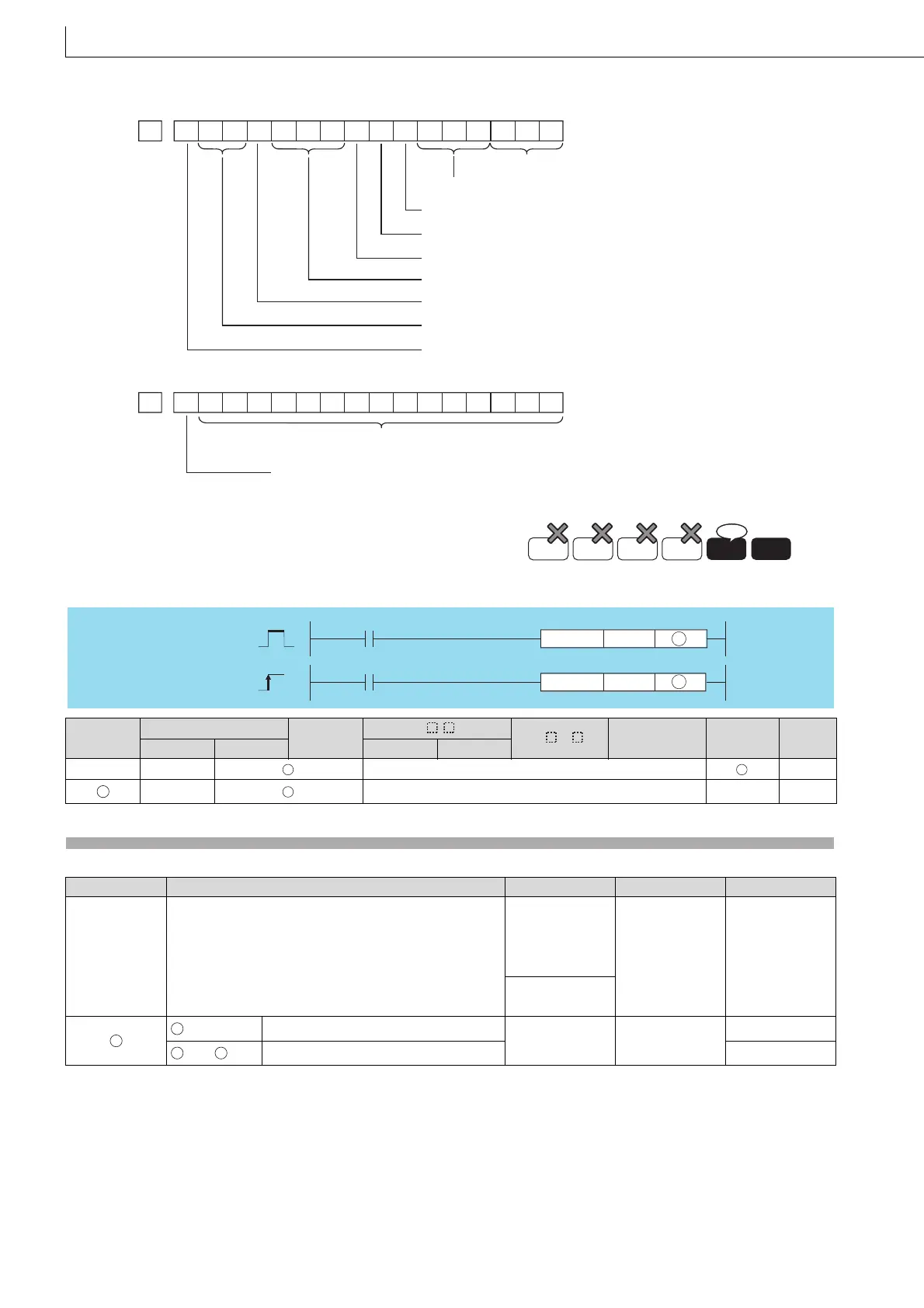

7.18.10 TYPERD,TYPERDP Reading module model name
7.18.10 TYPERD, TYPERDP
• Universal model QCPU: The serial number (first five digits) is
"11043" or later.
Setting
Data
Internal Devices
R, ZR
J\
U\G
Zn
Constants
K, H
Other
Bit Word Bit Word
n –– –– ––
–– –– –– ––
Setting data Description Setting range Set by Data type
n
Value obtained by dividing the start I/O number of a module
whose model name is to be read by 16
0 to FF
H
,
3E0 to 3E3
H
(Universal model
QCPU)
User BIN 16 bits
0 to FF
H
, 3E0
H
(LCPU)
+0
Execution result of the instruction
Within each
device range
System
BIN 16 bits
+1 to +9
Module model name Character string
b15 b14 b13 b12 b11 b10 b9 b8
b7
b6
b5
b4 b3 b2 b1 b0
D0
b15 b14 b13 b12 b11 b10 b9 b8
b7
b6
b5
b4 b3 b2 b1 b0
32-point module
Intelligent function module
(Empty)
(Empty)
(Empty)
No module errors
Module preparation complete
(Empty)
Module connected
D1
All 0, because information is stored in "D0".
The module is mounted as the second 16 points of a 32-point modul
e
01 01000000011001
1000000000000000
Basic
High
performance
Process Redundant Universal LCPU
Ver.
TYPERD
TYPERDP
Command
Command
TYPERD D
n
TYPERDP
D
n
D
D
D
D D
