Mitsubishi MELSEC-Q/L User Manual

623
TYPERD, TYPERDP
1
2
3
4
4
6
7
8

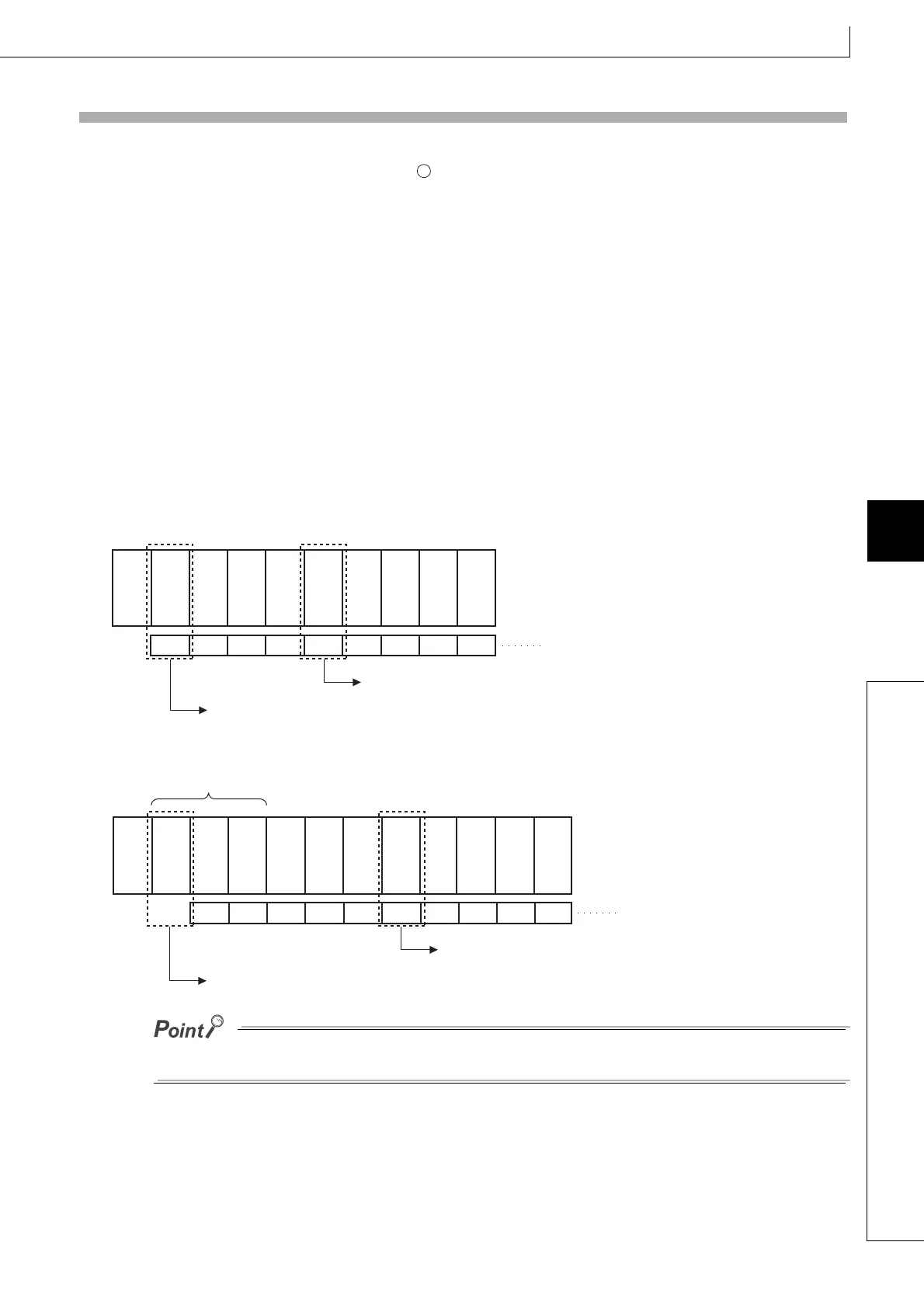

7.18 Other instructions 7.18.10 TYPERD, TYPERDP
Function
(1) This instruction reads the module information stored in the area starting from the I/O number specified by "n", and stores
it in the area starting from the device specified by .
The following 6 modules (Q series only) support the instruction.
• CPU module
• Input module
• Output module
• I/O combined module
• Intelligent function module
• GOT (bus connection)
For the LCPU, the following four models are supported.
• CPU module
• Input module
• Output module
• Intelligent function module
(2) The value of n is specified by the first 3 digits of the hexadecimal 4 digits that represent the start I/O number of a module
whose model name is to be read.
• When the target module occupies one slot
Universal model QCPU
LCPU
1. On the LCPU, if the built-in I/O or first I/O on the built-in CC-Link is specified, then the model name of the CPU module is
read.
D
Power
supply
module
CPU
module
QX10 QX10 QX10 QX10
Q68
ADV
QY41
P
QY10 QY10
3E00
H 0000H 0010H 0020H 0030H 0040H 0050H 0070H 0080H Start I/O number configured in
the I/O assignment setting
Specify H3E0 as the start I/O number of the CPU slot.
Specify K3 or H3 as the start I/O number to be read.
Power
supply
module
CPU
Built-in
I/0
Built-in
CC-Link
LX40
C6
LX40
C6
LX40
C6
L60A
D4
LY41
NT1P
LY10
R2
LY10
R2
LY10
R2
0000
H 0010H 0030H 0040H 0050H 0060H 0070H 0090H 00A0H 00B0H
Specify H3E0 to read the module name of the CPU module.
Specify K6 or H6 as the start I/O number to be read.
Start I/O number configured in
the I/O assignment setting
CPU module
(L26CPU-BT)
