8. DEBUGGING FUNCTION

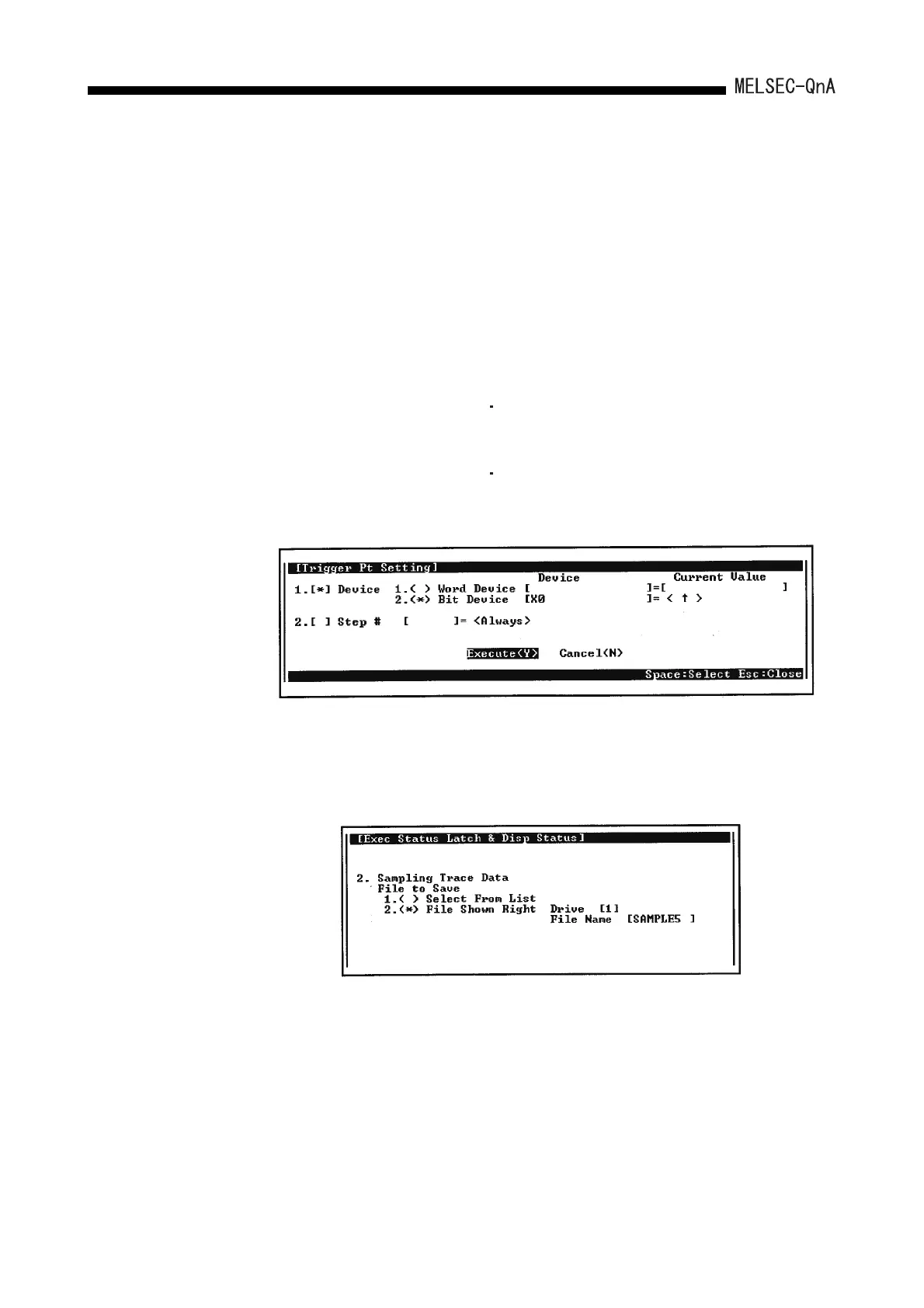

(b) "Trigger Point"
Set the condition to execute the status latch. Select one of the following:
(2) Write the created status latch condition to the memory card.
(a) Set the status latch file and storage destination.
Set the status latch condition at "1. ( ) Exec Status Latch & Disp Status" on the
"Status Latch" screen.
(b) Write the status latch file to the memory card.
Write the status latch file to the memory card using "7. ( ) Write to PC
(Condition)" on "Status Latch" screen.
Since file names are used when writing to the memory card, multiple status latch
files can be written.
1) At Instruction Execution : When executing SLT instruction
2) At Request of PDT : When operating trigger using the peripheral
devices capable of GPP function.
3) Specify Detail Condition : Set a device and step number.
The following shows setting examples: The details
on how to make the settings and trigger execution
timing are the same as described in Section 8.2.1
Monitor condition setting in Monitor function.
Data collection timing
In the case that only "Device" is specified, data
are collected when the trigger condition is
satisfied.
In the case that "Step No." only is set, data is
collected with the END processing when the
trigger condition is satisfied.
