8 - 39
8. DEBUGGING FUNCTION
(3) Execute the status latch.
Execute the status latch by using "1. ( ) Exec Status Latch & Disp Status" on "Status
Latch" screen.

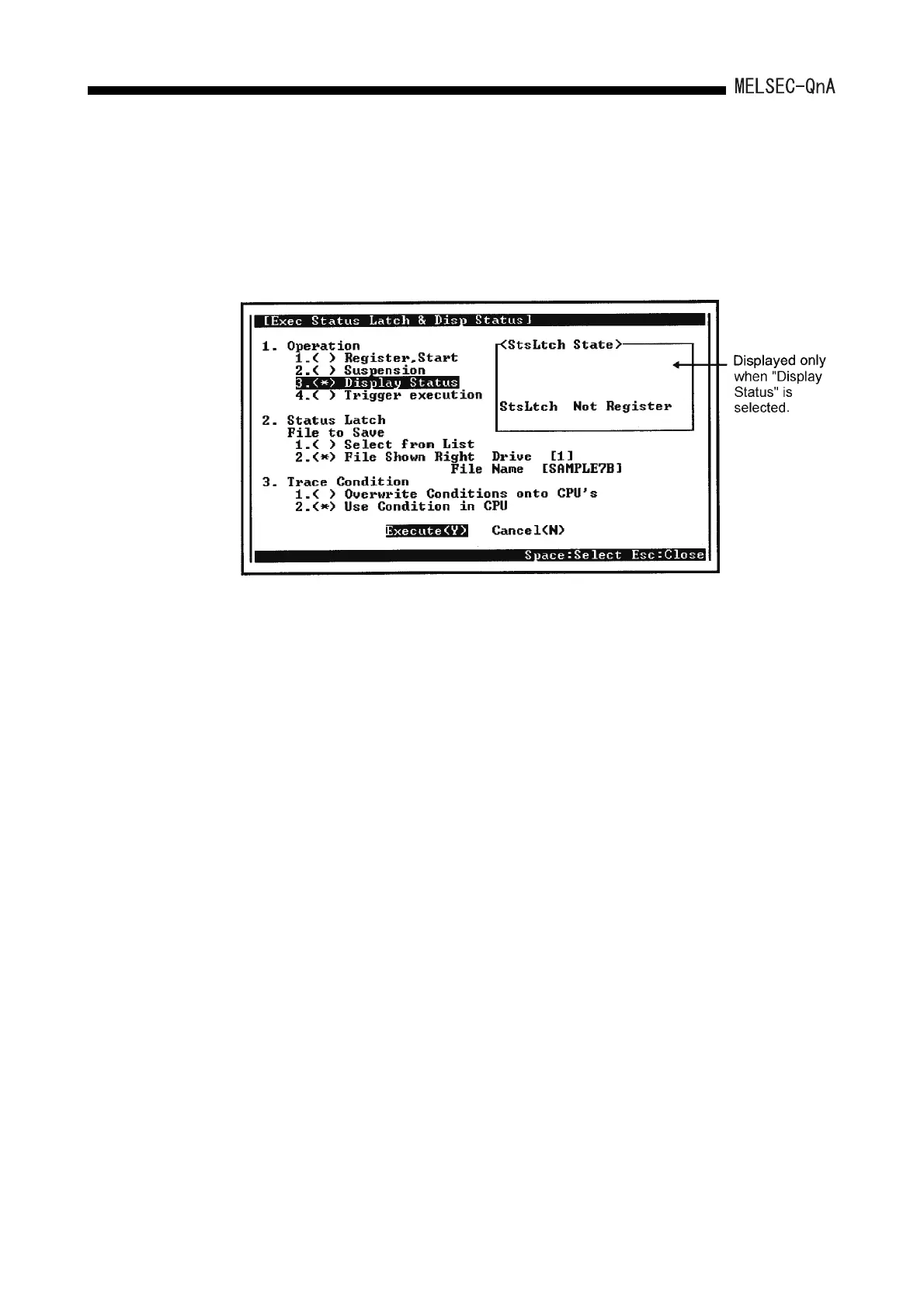

The following shows a setting example for "1. ( ) Execute Status Latch & Display
Status".
The following is an explanation of the screen above:
The following settings can be made for "Exec Status Latch & Disp Status": "1
Operation", "2 Status Latch", and "3 Trace Condition".
(a) "Operation"
Select one of the following:
(b) "Status Latch"
Select one of the following:
(c) "Trace Condition"
Select one of the following:
1) Register, Start : The status latch is registered and started.
Device data collection is started.
2) Suspension : The status latch statuses are cleared.
3) Display Status : The status latch statuses are displayed on
the same screen.
4) Trigger execution : The trigger is executed. (Refer to Precaution
6).)
1) Select From List : Data from among the status latch files in the memory
card are selected.
2) File Shown Right : The drive number and status latch file name are set.
1) Overwrite Conditions onto CPU's : The status latch condition in an existing
status latch file is overwritten.
2) Use Condition in CPU : Status latch under the condition in the
status latch file designated in "2. Status
Latch" is executed.
To Next Page
