MKS 247D - Setup; Dimensions; Figure 1: Front Panel Dimensions

Setup Cha
p
ter Two: Installation
24
Setup
Dimensions
Note
All dimensions are listed in inches with millimeters referenced in
parentheses.
9.469
(240.5)
3.469
(88.1)
3.00
(76.2)
0.50
(12.7)
0.234
(5.94)
8.86
(225.0)

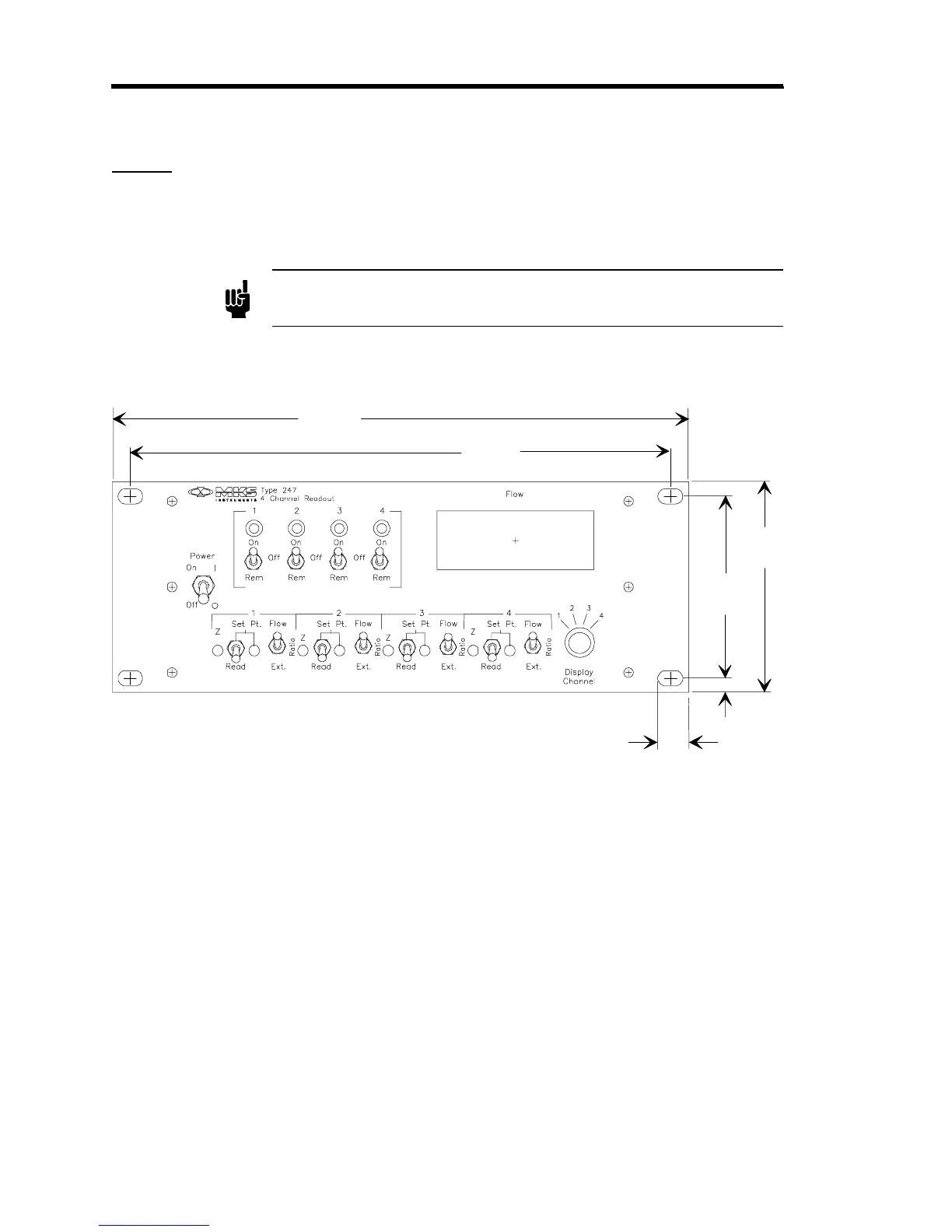

Figure 1: Front Panel Dimensions
