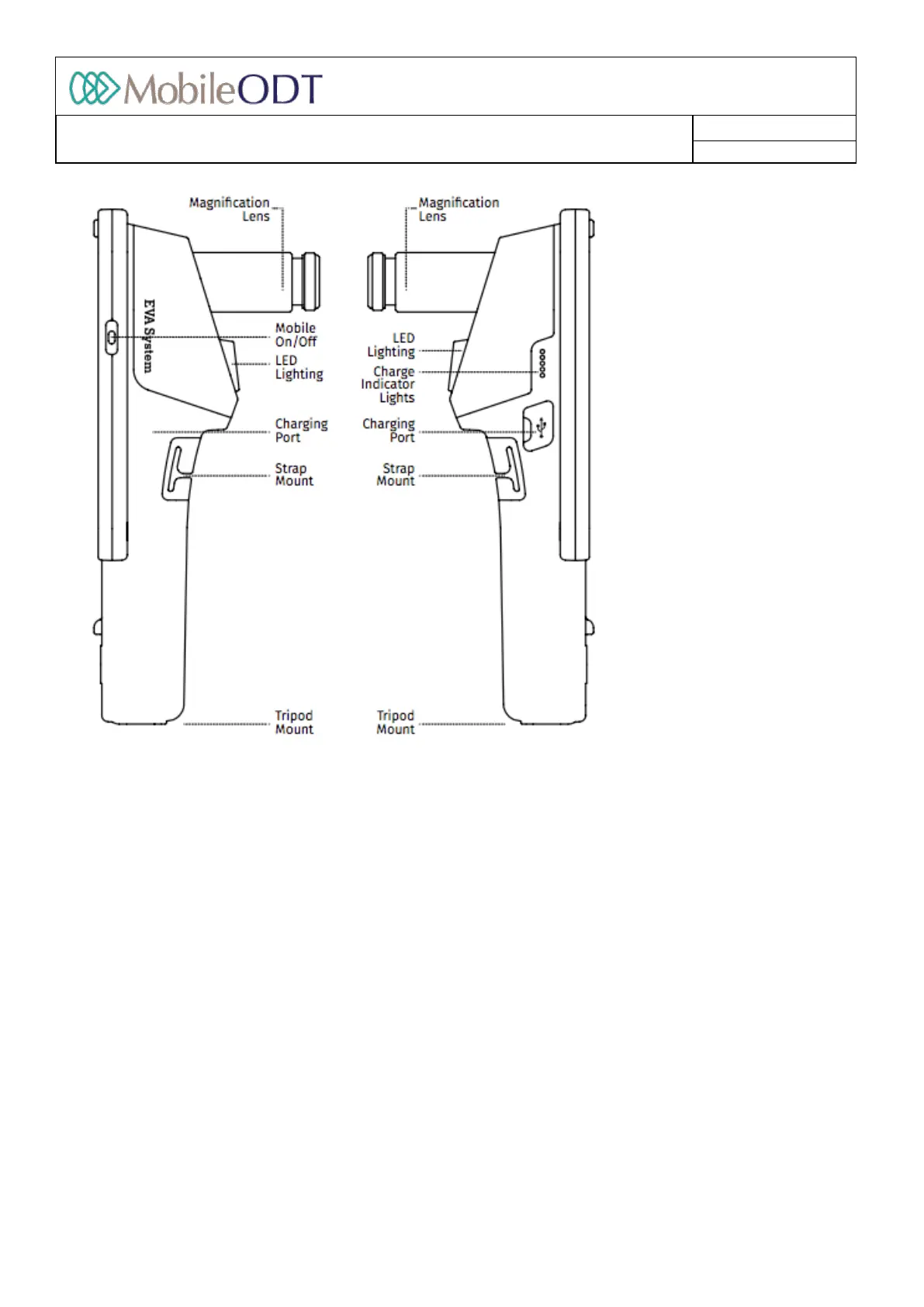

LeftView(figure3)    Rightview(figure4)

2.1. ConnectingtotheEVAstandoraneckstrap
TogetherwithyourEVASystem,MobileODTprovidesadevicestandforstabilizingthecolposcopewhile
capturinganimage.Therearetwotypesofstands:awheeledstandandaportablestand.Belowarebasic
instructionsonconnectingthecolposcopetobothmodels.Seethedetailedassemblyinstructionsthatcame
withthestanditselfforfurtherexplanations.

2.1.1. WheeledStand
2.1.1.1. Thewheeledstandenableshandsfreeexaminationandallowsyoutomovefreelywithinyour
clinicwhilekeeping theEVASystem connected tothestandatalltimes.

2.1.1.2. Thewheeledstandarrivesintwodistinctparts:thebaseandthepole.Duringtheexam,thestand
wheelsshouldbelockedmanuallytoimprovestabilityandlimitmotionblur.

2.1.1.3. Inaddition,the360°ballheadcanbeadjustedduringtheexampletoimprovetheabilityto
visualizethecervixatthenecessaryangle.

2.1.1.4. Toassemblethestand,usetheprovidedkeytoscrewthepipewiththeballheadtothebasewith
helpofM6selflockingnut,M6washerandspringwasherincludedintheshipment.Refertothe
graphicalinstructionsbelow.
