3.1.5. Chargeindicatorlights chargingmode

3.2. ChargingtheMobileDevice
3.2.1. Tochargethemobiledevicewhenitisfittedwithintheopticalunit,connecttheMicroUSBcableto
thechargingportbuiltintotheunit.
3.2.2. Toaccesstheport,raisethechargingportcoverlocatedabovetheLEDlighton/offswitch.
3.2.3. ConnectthecabletoawallsocketwiththeproperUSBelectricalportadapter.
3.2.4. Themobiledeviceshouldbechargedwheneverthecolposcopeisnotinusetoensureproper
functionalityduringtheexamination.


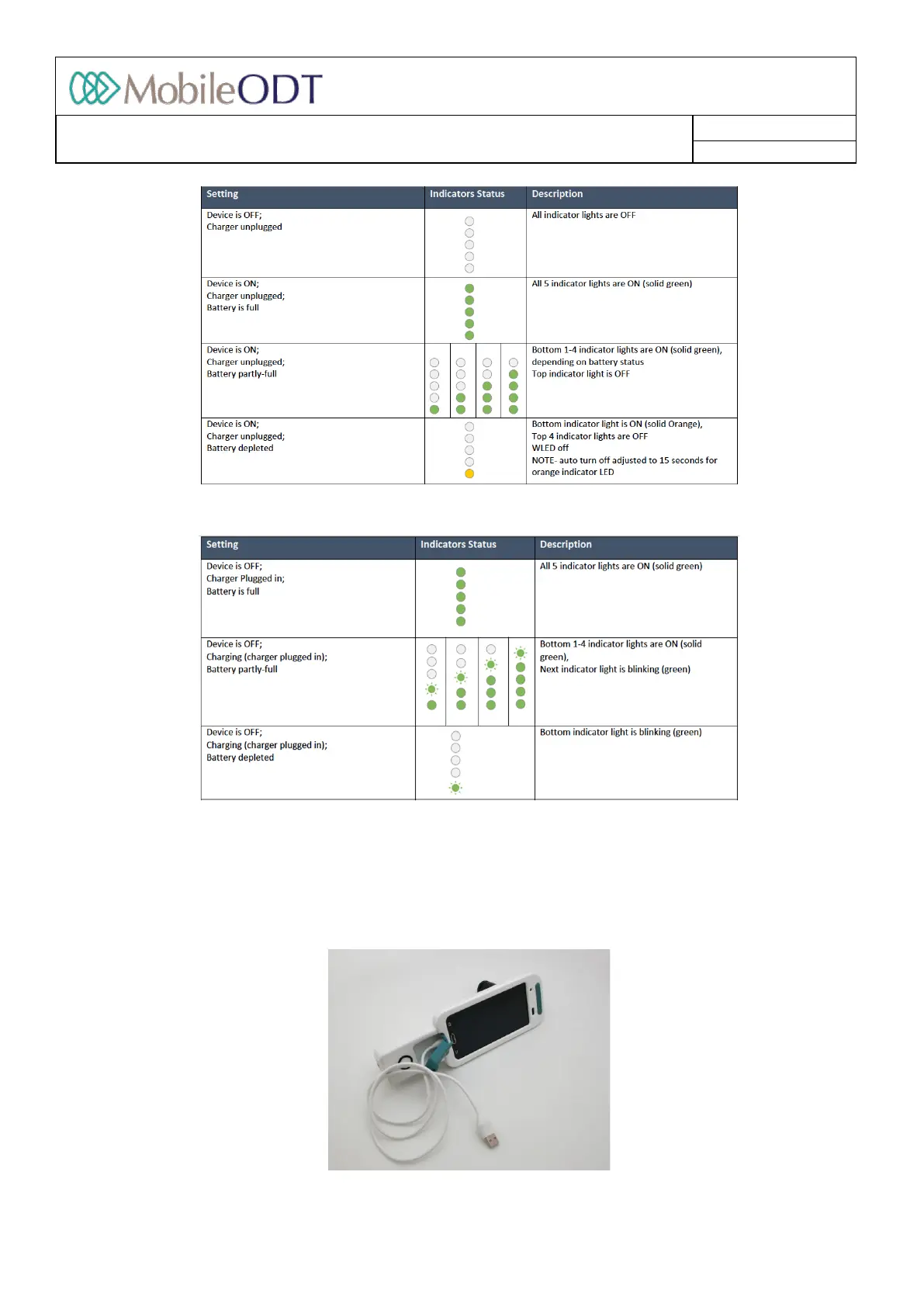

(figure12)
