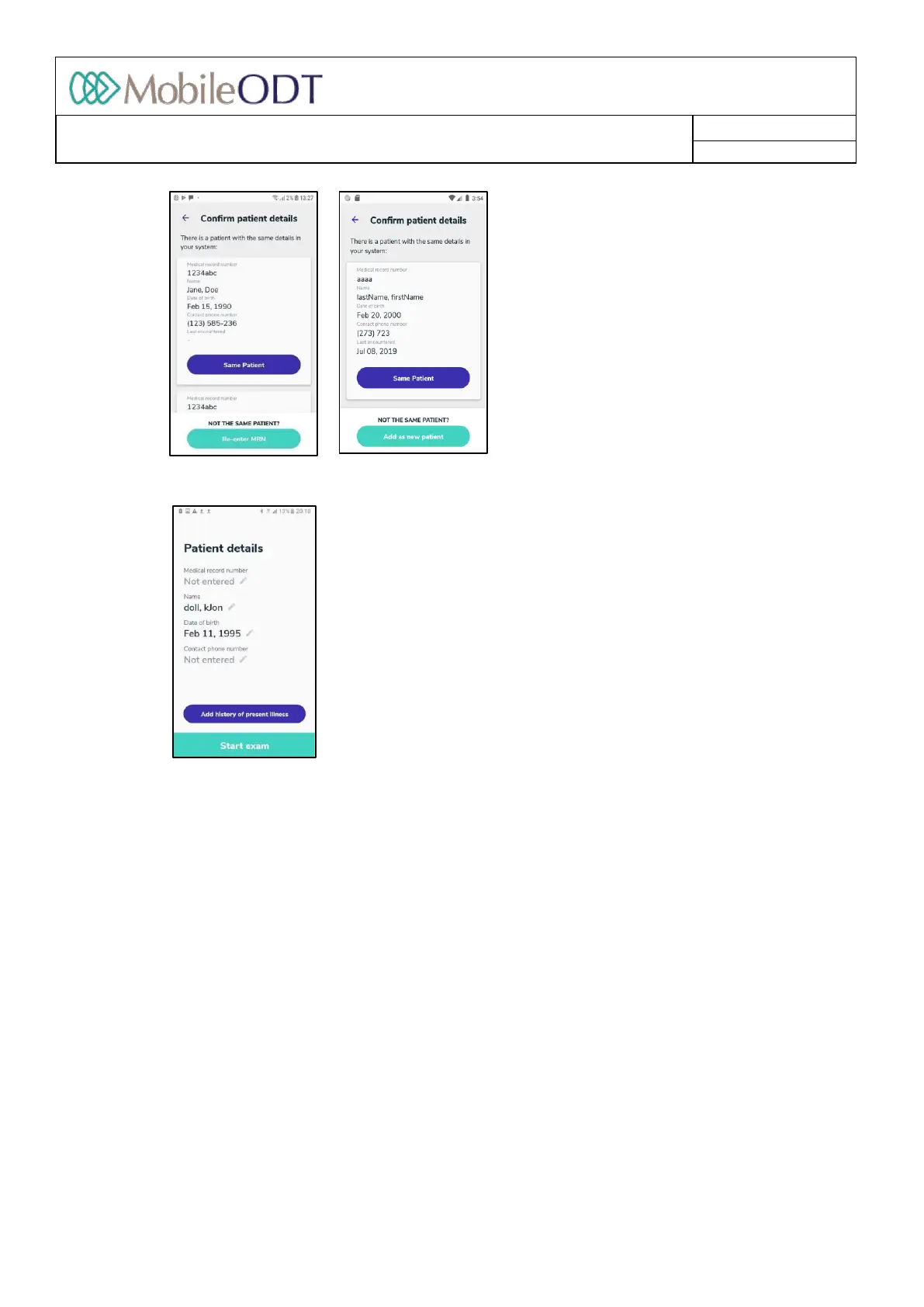

11.10.9. Asummaryofallenteredinformationwillbedisplayedwithanoptiontoediteveryfield.









11.11. Captureimages
11.11.1. Inthesummary(section6.4)tapon'Startexam'andthevisualizationscreenwillbedisplayed.
11.11.2. Followthesestepstoensureyouarecapturingclinicallyusefulandfocusedimages:
• Ensurethedevicelightsourceisturnedon.
• Ensurethefinefocuswheelfoundatthetipofthelensisturnedallthewayout.
• Adjustthedeviceattheappropriateworkingdistancefromthepatient(typicallybetween2242cm).
• Adjustthefinefocuswheeltoachieveoptimalfocus.
11.11.3. Pinchinoroutwithyourfingersonthescreentozoominandout
11.11.4. Tousethegreenfilter,taponthegreenbuttonthebottomright.

