3. After marking the Camera Height on the TAC Target enter the already
measured Camera Height in the Camera Installation slide Measurements
section

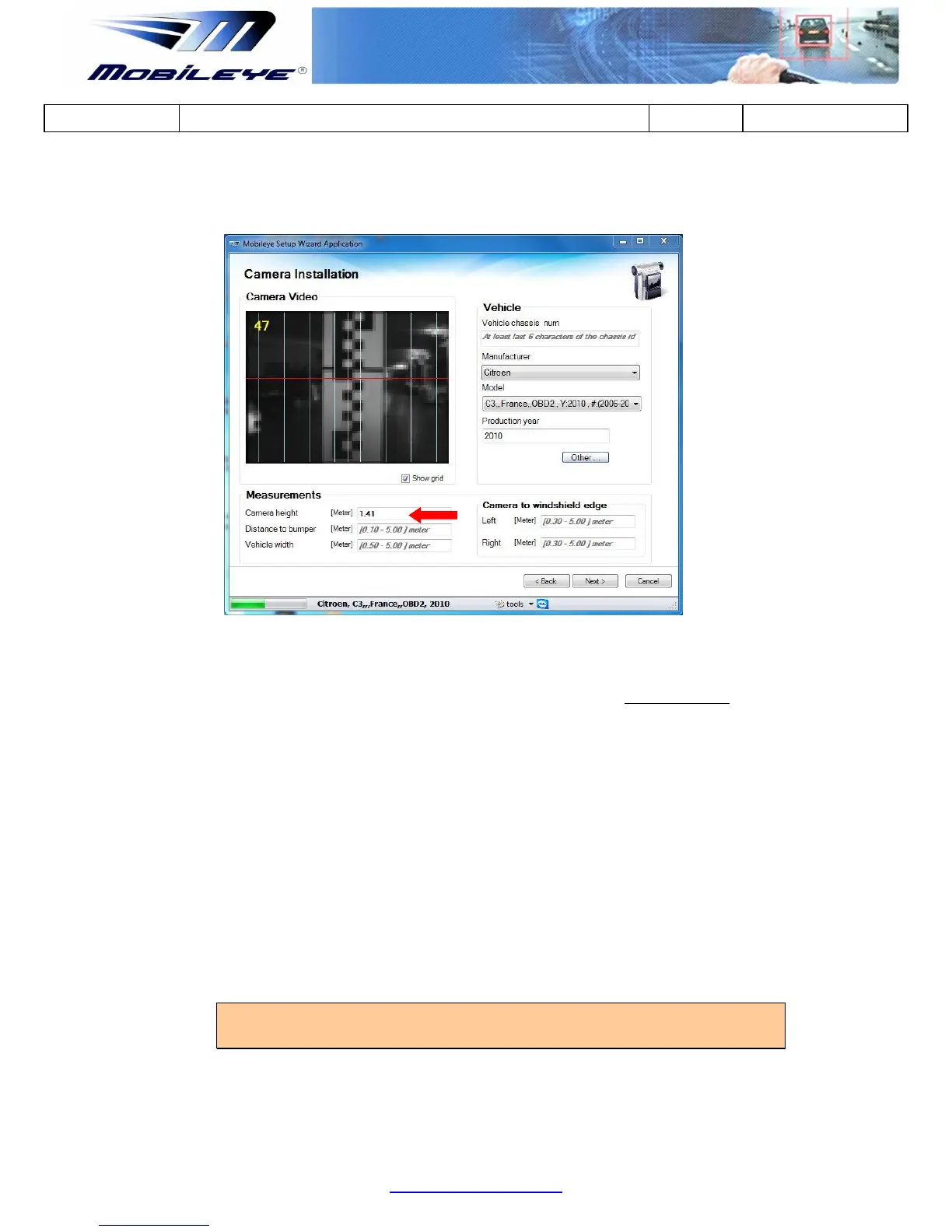

a) When inserting camera height value in the field under Measurements
section, a Red horizontal line will pop-up in the camera image feed.
b) Using the Red line and image feed; adjust the Camera Lens Angle by sliding it
Up/Down the Camera Railing until the Red line is aligned with the marked
line on the TAC target.
4. Once the Camera Angle is adjusted correctly, Lock (tightened) the Camera
Adjustment Screw and continue with entering all other measurements and
information in this slide, as instructed below:
NOTE: Do not re-connect the Main Unit Back Covers until the Calibration
Process is completed.
