Mobileye 6 - AUX Wire Connections; AUX Connection to Analog Turn Indicators (High Polarity); 6 Appendix B

Technical Support
Mobileye 6  Technical Installation Guide_Rev0.3
Feb, 2016
Page 45 of 65
Mobileye Proprietary and Confidential
support@mobileye.com
6 Appendix B
6.1 AUX wire connections
Mobileye 6 can be installed only in vehicles that have a Speed Signal Source by CAN-
bus.
Vehicles without a Speed Signal Source by CAN-bus cannot be installed with the
Mobileye 6 system (unless you are using the Mobileye Analog to CAN adaptor called
-!
6.1.1 AUX connection to Analog Turn Indicators (High Polarity)
In vehicles that have a Speed Signal Source by CAN-bus but are missing the Left &
Right Turn indicators by CAN-bus, the AUX wire can be used to complete the
installation with the minimum required vehicle signal connected for the Mobileye
System operation.

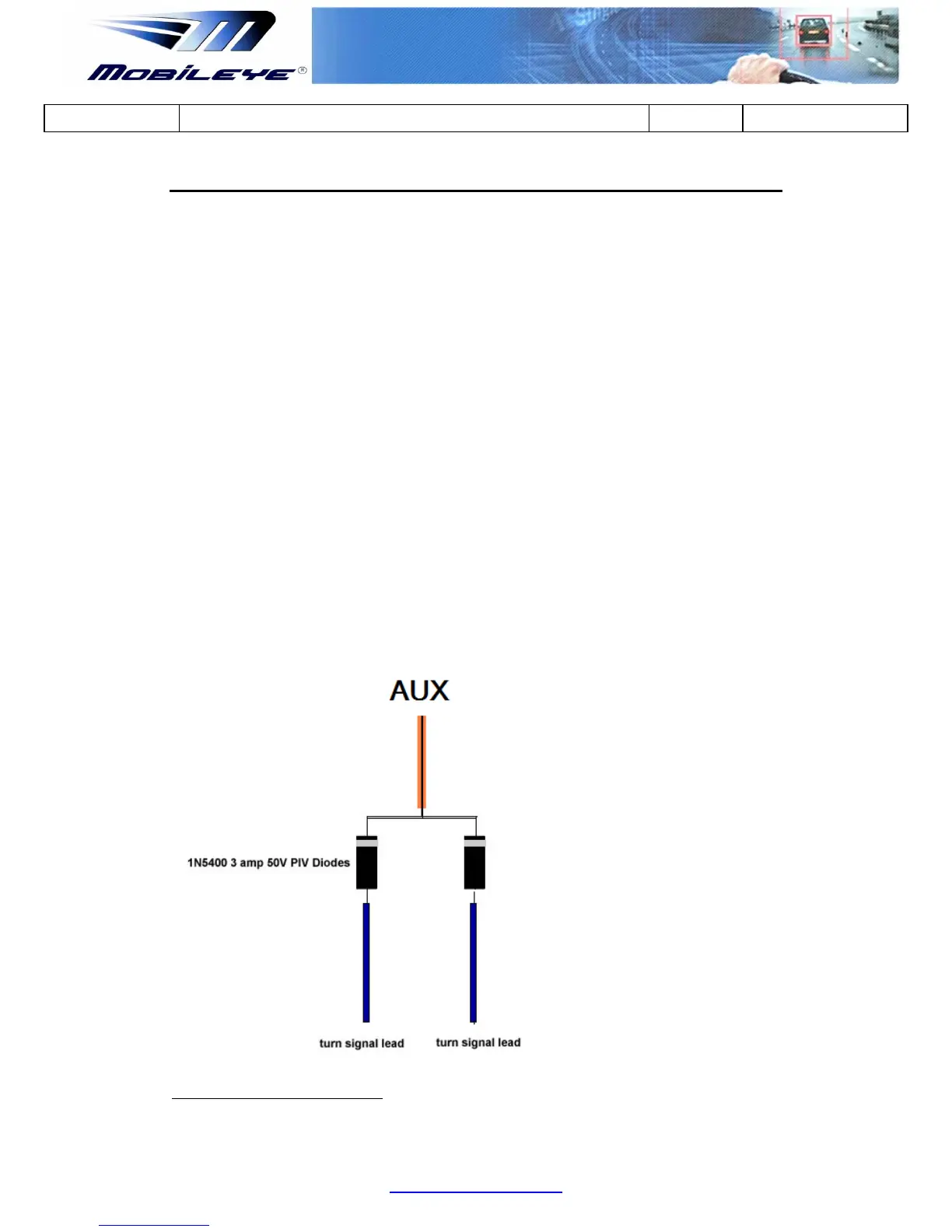

In such cases the AUX wire needs to be connected to both analog Left and Right Turn
indicator signals via 2 Diodes as shown in the connection scheme below:
1
1
The Polarity of the Turn indicator signals in this connection will always be “High”
