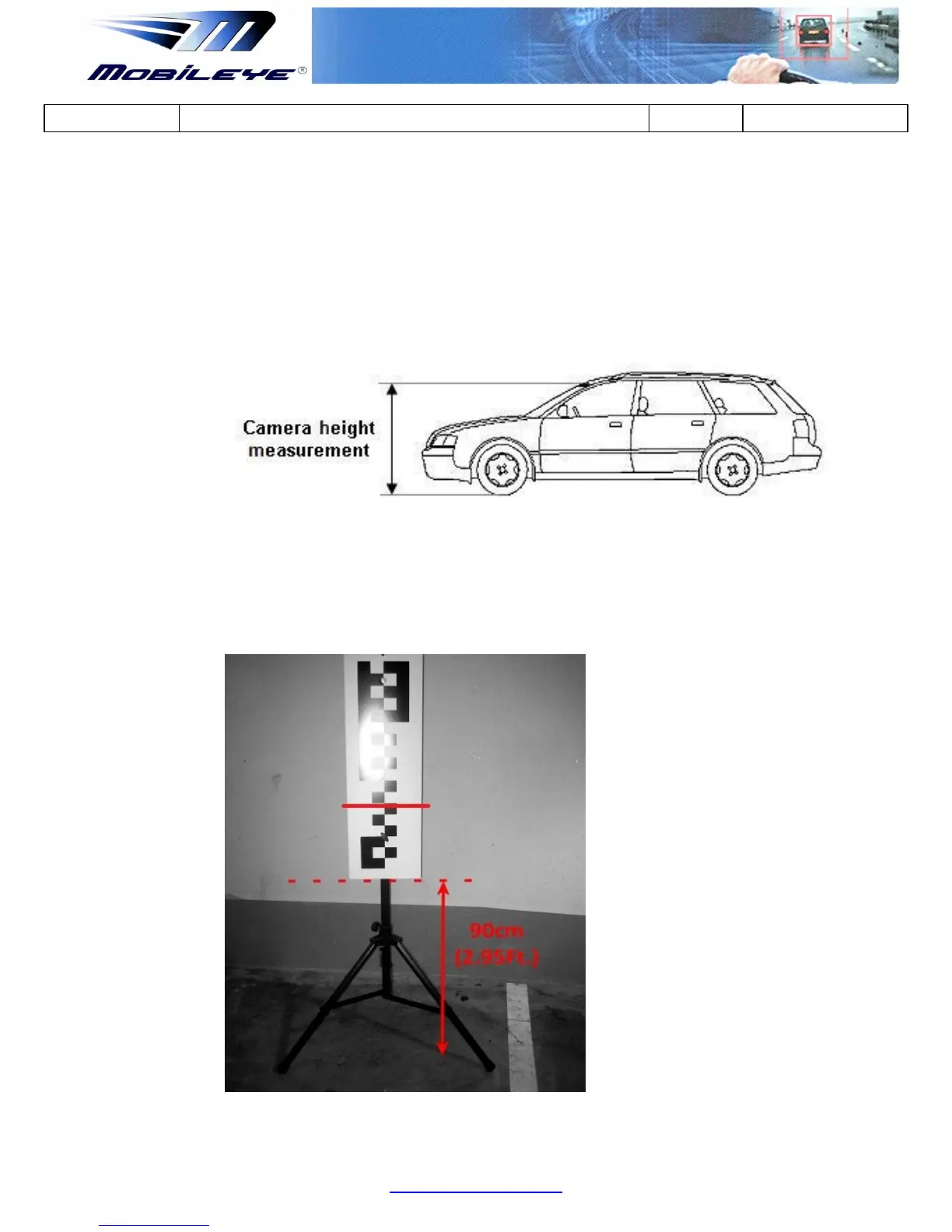

4.2 Adjusting the Camera Angle + Vehicle information and
measurements
To adjust the correct camera angle follow the below procedure:
1. Measure the Camera Height from the Ground Up using a measuring tape
2. Using a piece of isolation tape (See Red Line in below image), mark the
Camera Height you measured on the TAC Target.
- When TAC is assembled and Open correctly the bottom part of the
Checkered TAC Board should be 90 cm from the Ground.
- Each Checkered Box in the TAC board = 5 cm
Red Line represents Camera Height marked by isolation tape at a Height of 1.25m
