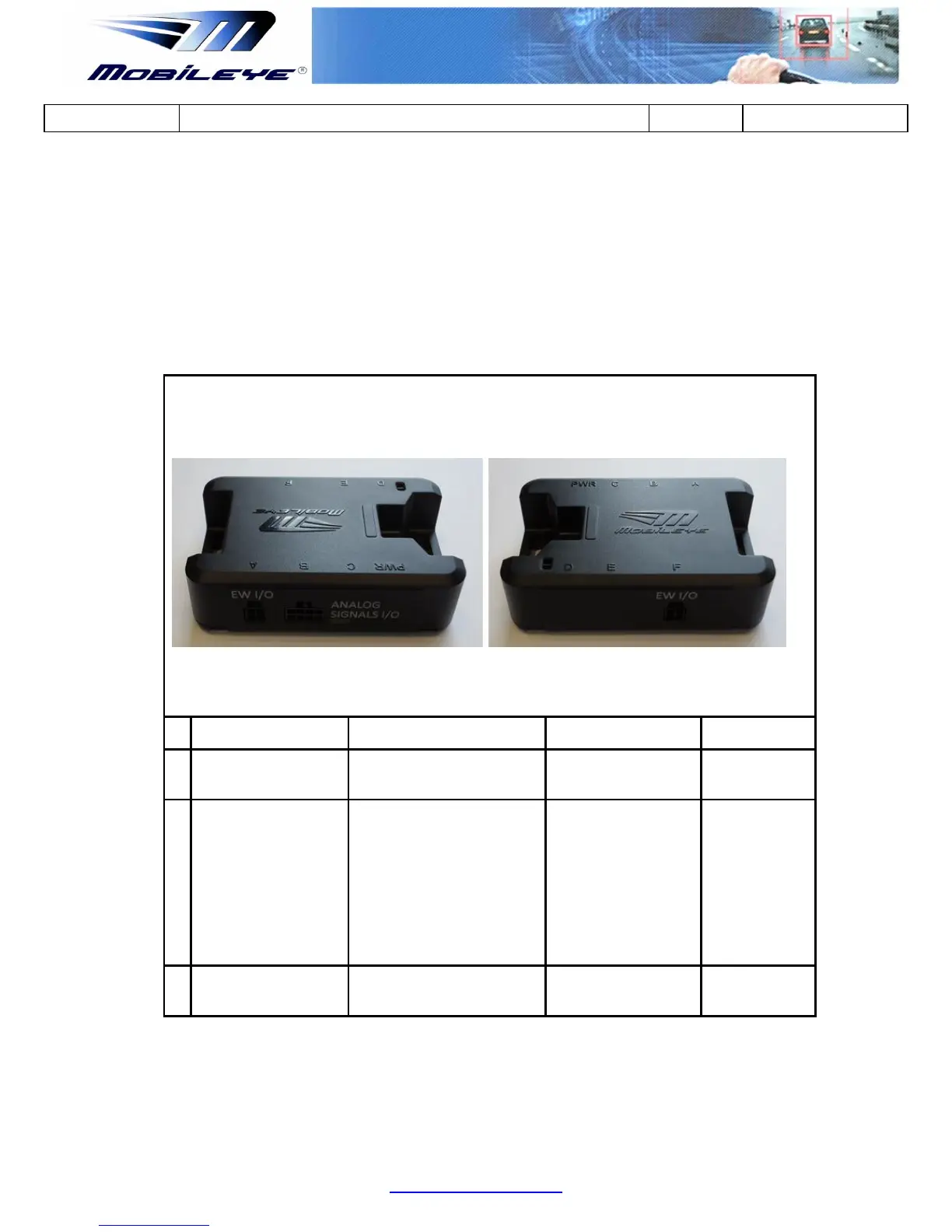

9.2 E-box Components
The Mobileye E-box has 3 components:
1) E-box unit
2) A-box I/O Signals Cable (CAB000133)
3) Mobileye 6 to A-box Cable (CAB000131)
E-box
Port name
Function
Connect to
Color
1
Analog signals I/O
Analog signals
Input/output
A-box I/O Signals
Cable (CAB000133)
Multiple
2
EW I/O (1)*
1) 5V Power supply to E-
box (from Mobileye 6
unit).
2) Analog Signals input to
Mobileye 6 from E-box (via
Mobileye RS485 protocol)
Mobileye 6 to A-box
Cable (CAB000131)
3
EW I/O (2)*
See “EW I/O (1)”above
EyeWatch Cable
(CAB000087)
* Note: The Ports “EW I/O (1)” and “EW I/O (2)” functionality is the same and both can be
used as described above.
