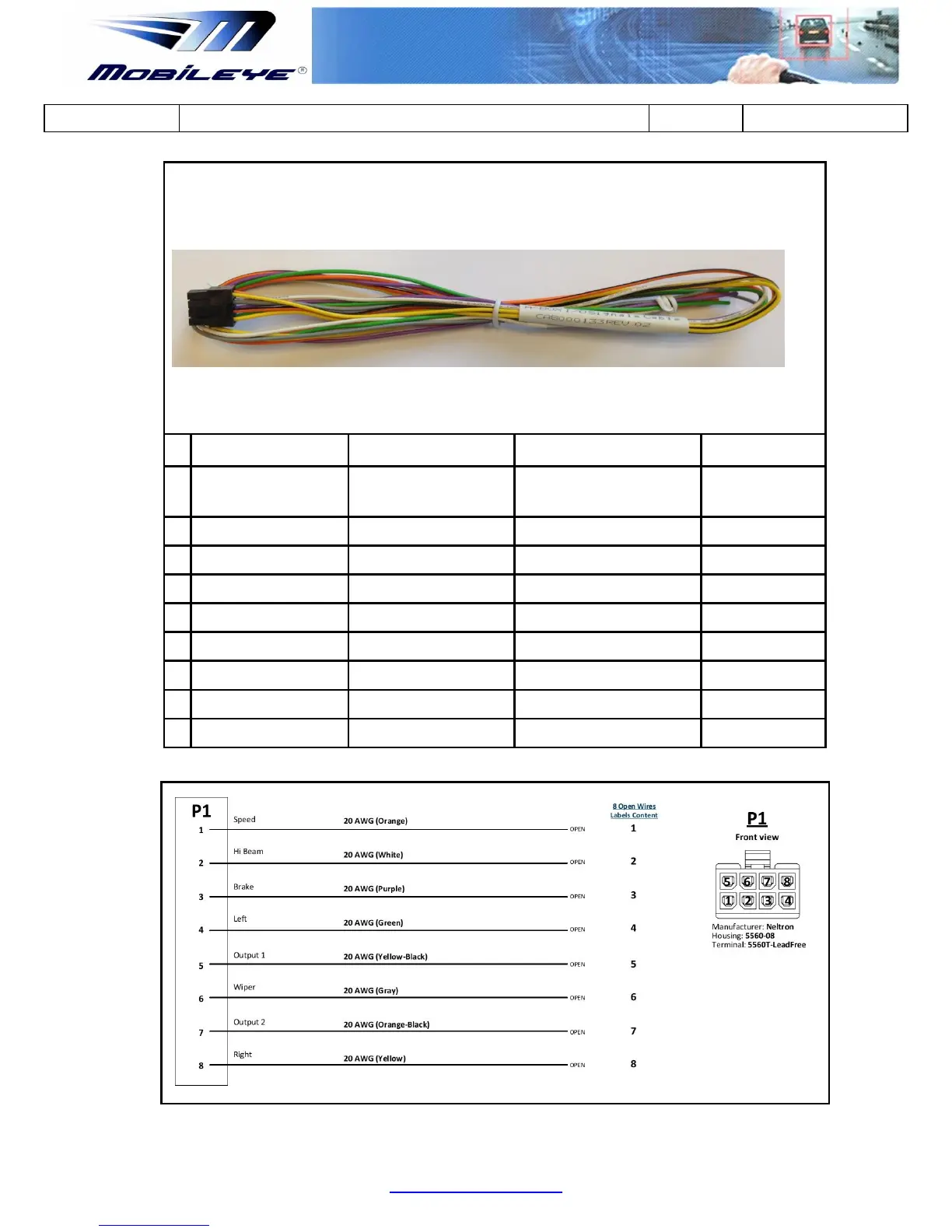

A-box I/O Signals Cable (CAB000133)
Cable Label
Function
Connect to
Color
A-box I/O Signals
Cable (CAB000133)
Analog signals
Input/output cable
A-box - Analog Signals
I/O port
Multiple
1
“1”
Speed
Vehicle Speed Signal
Orange
2
“2”
High Beams
Vehicle High beams Signal
White
3
“3”
Brakes
Vehicle Brake Signal
Purple
4
“4”
Left
Vehicle Left Turn Signal
Green
5
“5”
Output 1
Yellow/Black
6
“6”
Wipers
Vehicle Wipers Signal
Gray
7
“7”
Output 2
Orange/Black
8
“8”
Right
Vehicle Right Turn Signal
Yellow
