6.1.2 AUX connection to Analog Turn Indicators (Low Polarity)

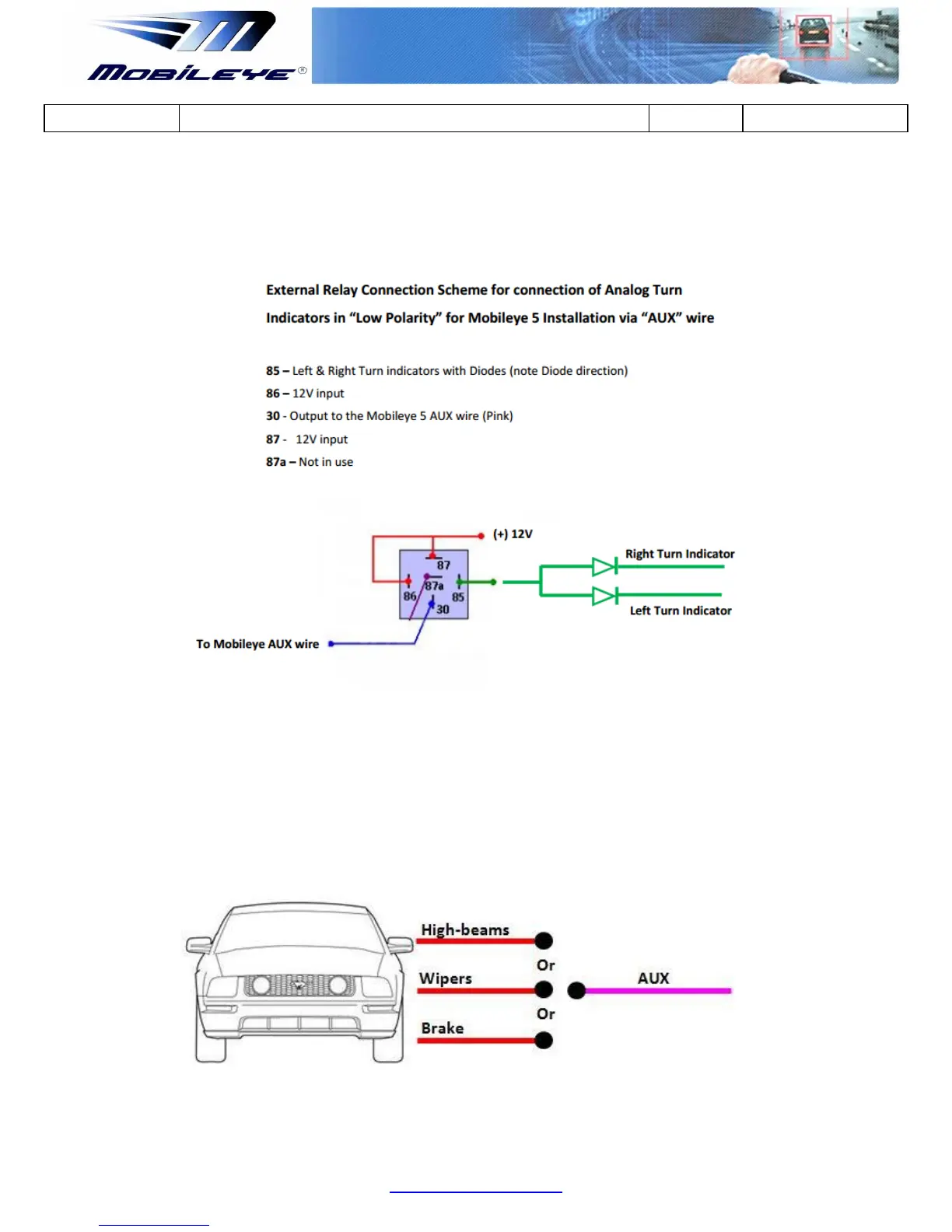

If the analog Left & Right Turn indicators are in Low Polarity, follow the AUX
connection scheme below.
6.1.3 AUX connection to Analog signals
In all other cases in which only the Brake, Wipers or High-beams signal is missing on
the vehicle CAN-bus, the AUX wire can be used to complete the installation with a
direct connection to the required analog signal.
