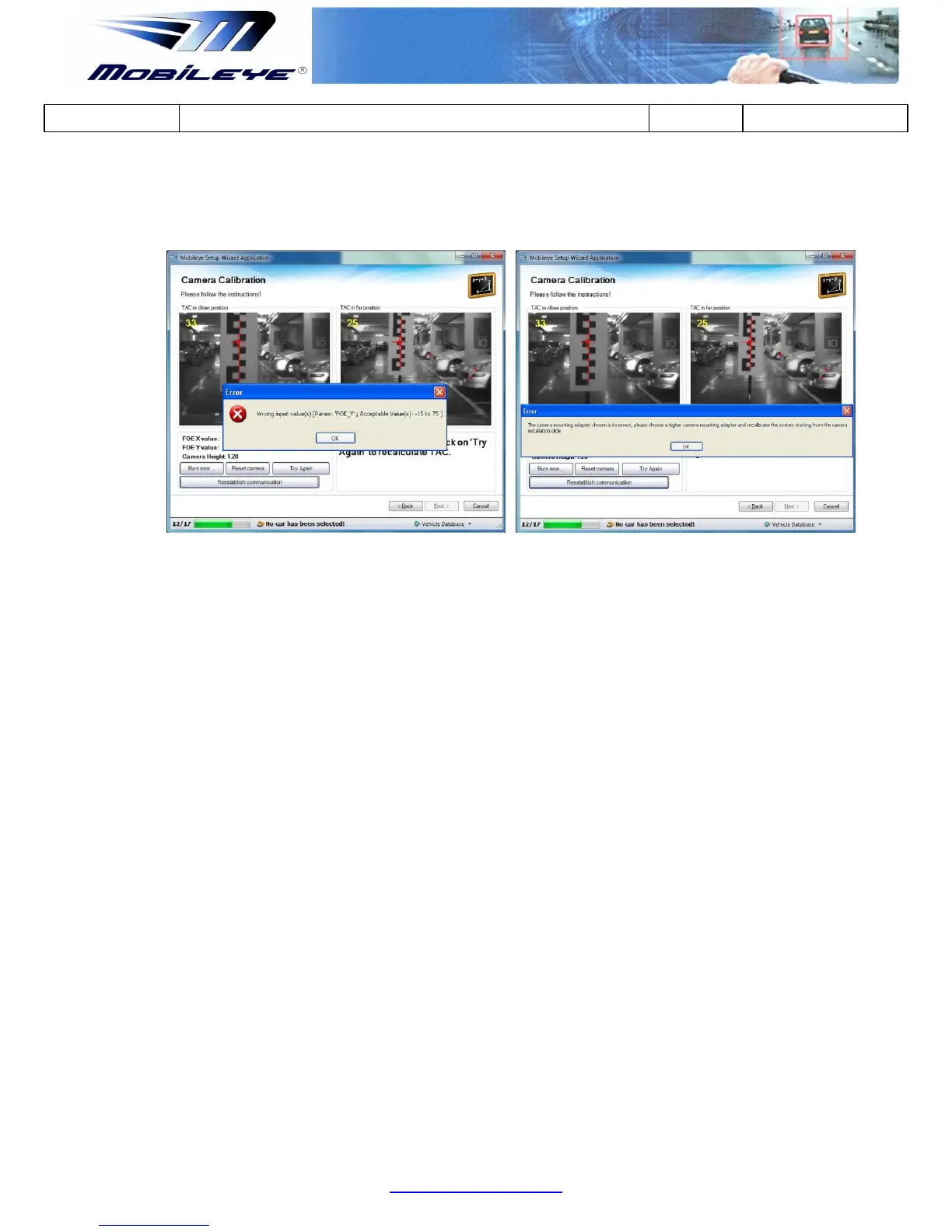

If the Camera Angle is out of rang and the F.O.E- Y value exceeds the acceptable
norms an error message will appeared after the Far TAC Calculation (see figure
below).
If such a case appears follow the below instructions:
a. The Mobileye Setup Wizard will automatically return you to the
b. Change the Camera angle (refer to sections 4.2 above) to
increase/decrease the Camera angle by 1° or 2° degrees,
according to the FOE Y results (or more if you were far from a 3°
to 5° degree angle).
c. Continue with the standard Calibration Process (as instructed in
the Mobileye Setup Wizard).
