D26 Camera Manual: Installation
Stand/Wall Mount for Camera Tests (MX-OPT-TW-Demo-1)
The Stand/Wall Mount is a useful accessory for testing and for nding the optimum mounting
position of the camera. The set also includes an Allen wrench as well as a Torx screw with
dowel and the corresponding Torx wrench for installing as alternative wall mount for testing.
Using as a Stand (with/without tripod)

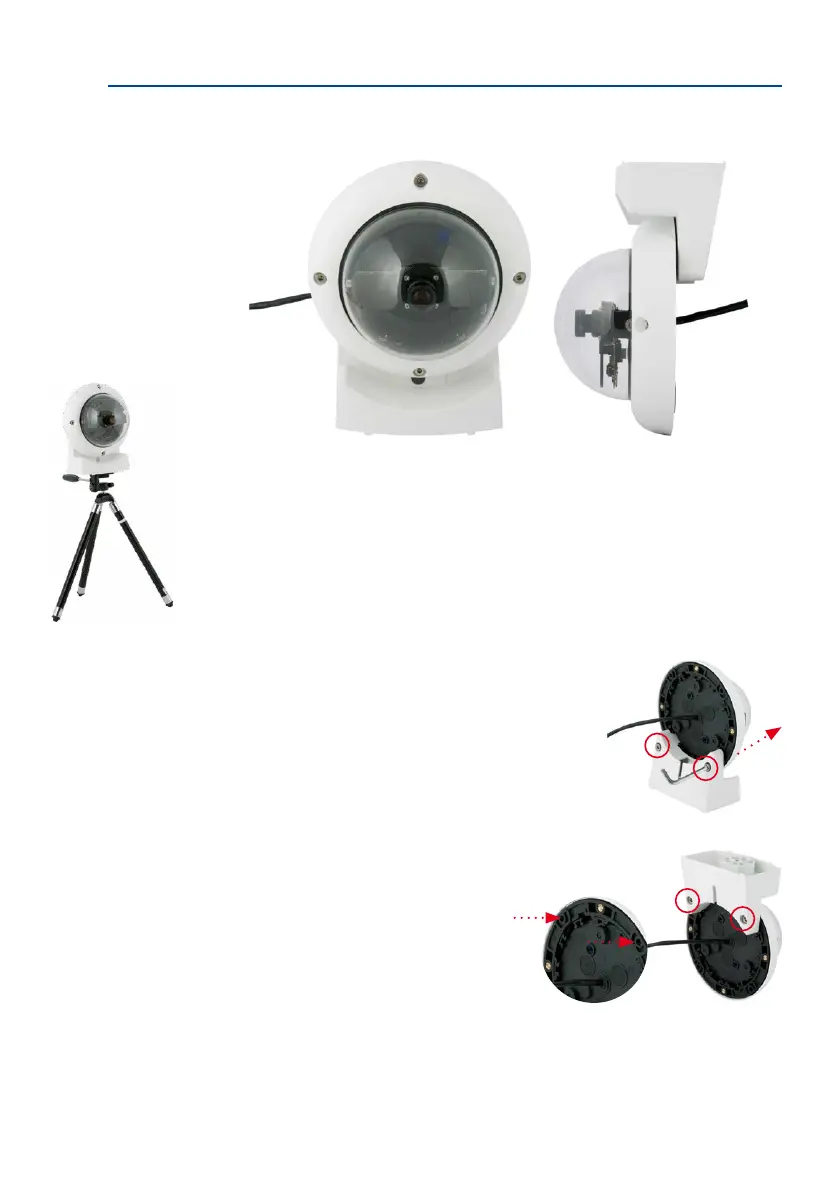

Using this stand, you can now place the camera upright on a at surface or mount the whole
assembly on a tripod (1/4” tripod thread at the bottom of the stand).
Converting to a wall mount (simulation of On-Wall set with 10 deg. tilt)
1. If required, release the two stainless steel Allen screws
and remove the camera from the stand/wall mount.
2.
Place the camera with the two upper body
screws exactly into the two receptacles
of the Stand/Wall Mount.
