D26 Camera Manual: Installation
2.7.2 Mounting to a Pole

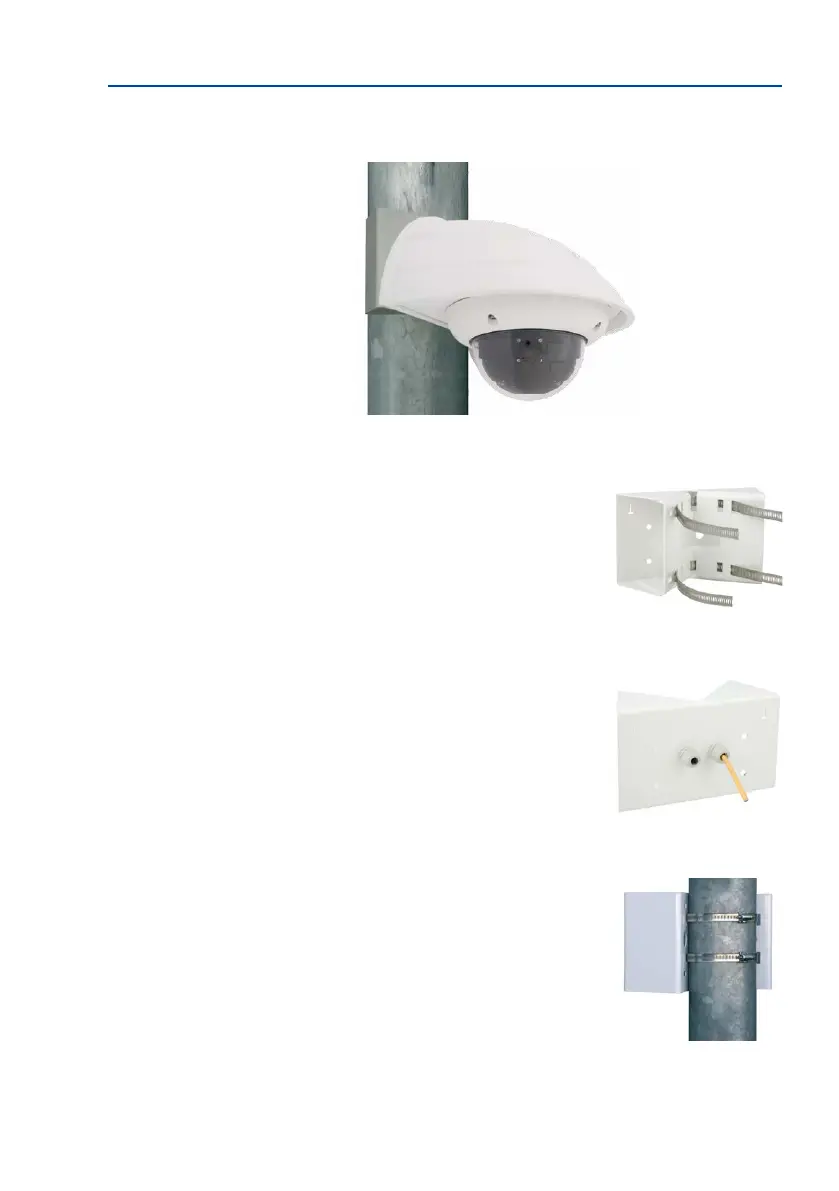

Use the supplied stainless steel straps to aix the Corner and Pole Mount to a pole.
• Guide the supplied stainless steel straps through the
openings in the Corner and Pole Mount as shown in the
diagram. Make sure that you are using the slots of the
mount that best t for the thickness of the pole. The
stainless steel straps allow attaching the mount to poles
with diameters between 60 and 180 mm.
• Guide the on-site network cable from behind through
one of the large round holes of the Corner and Pole Mount.
In order to properly protect the cabling, it is best to pass
the cabling from the inside of the pole through the Corner
and Pole Mount directly into the camera (concealed
cabling). Note: The cable length from the pole should
be at least 80 cm!
•
Tighten the stainless steel straps on the Pole Mount with
a screwdriver. If necessary, the ends of the straps can
be cut o.
