Mounting the Camera with the In-Ceiling Set

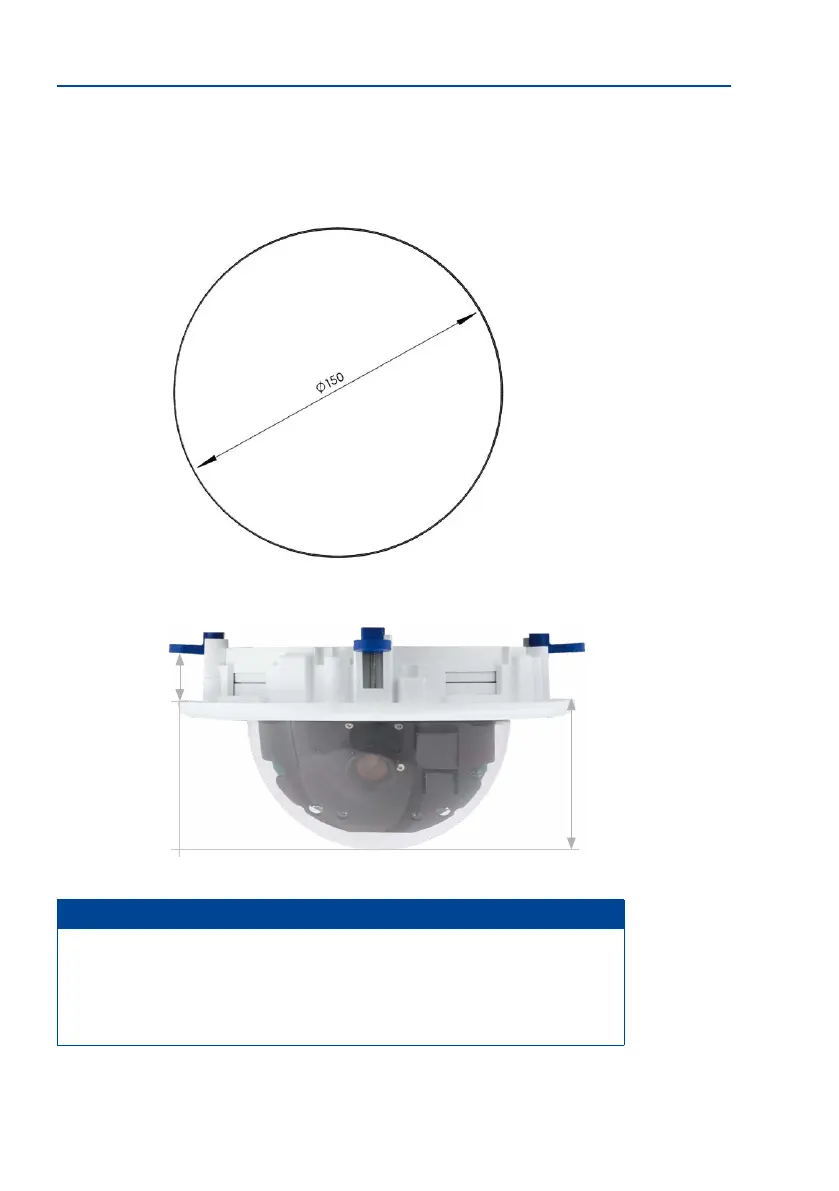

Drilling Template In-Ceiling Set
Notes
Use the drilling template available on www.mobotix.com, Support > Download
Center > Documentation > Drilling Templates.
Make sure that the drilling template is not scaled or adjusted to the paper size when
printing the PDF le (enlarged or reduced).
6 to 22 mm/0.24
to 0.87 in
ø 180 mm/7.09 in
65 mm/2.56 in
The In-Ceiling Set can be
used in ceilings and walls
that have a thickness of 6
to 22 mm/0.25 to 0.9 in
