Maintenance
Opening the Camera Body
2. Open the two allen screws using the Allen wrench M.3.

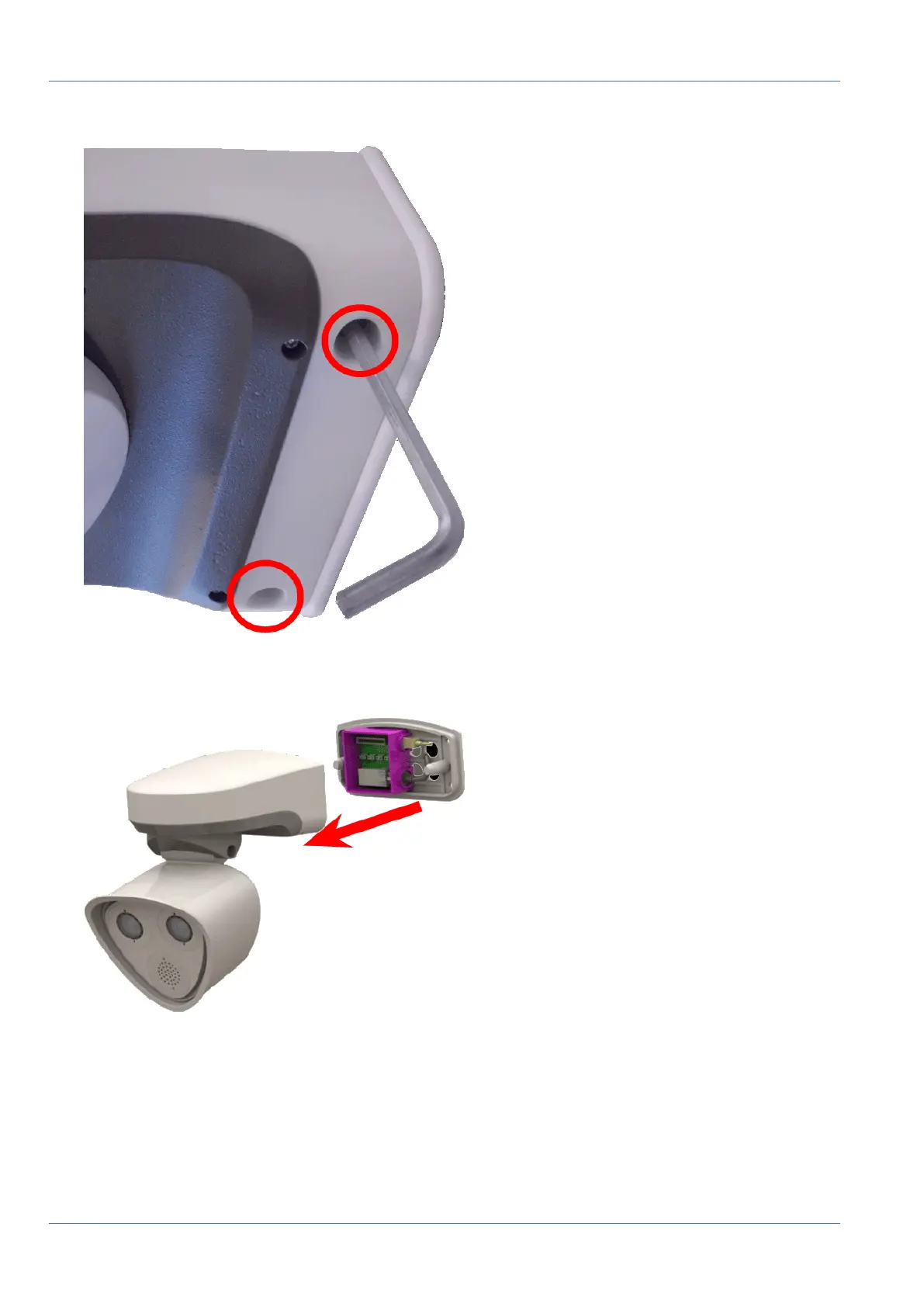

Fig. 92: Open allen screws
3. Carefully pull the camera body off the mounting plate.
Fig. 93: Pull the camera body off the mounting plate
107 / 110
