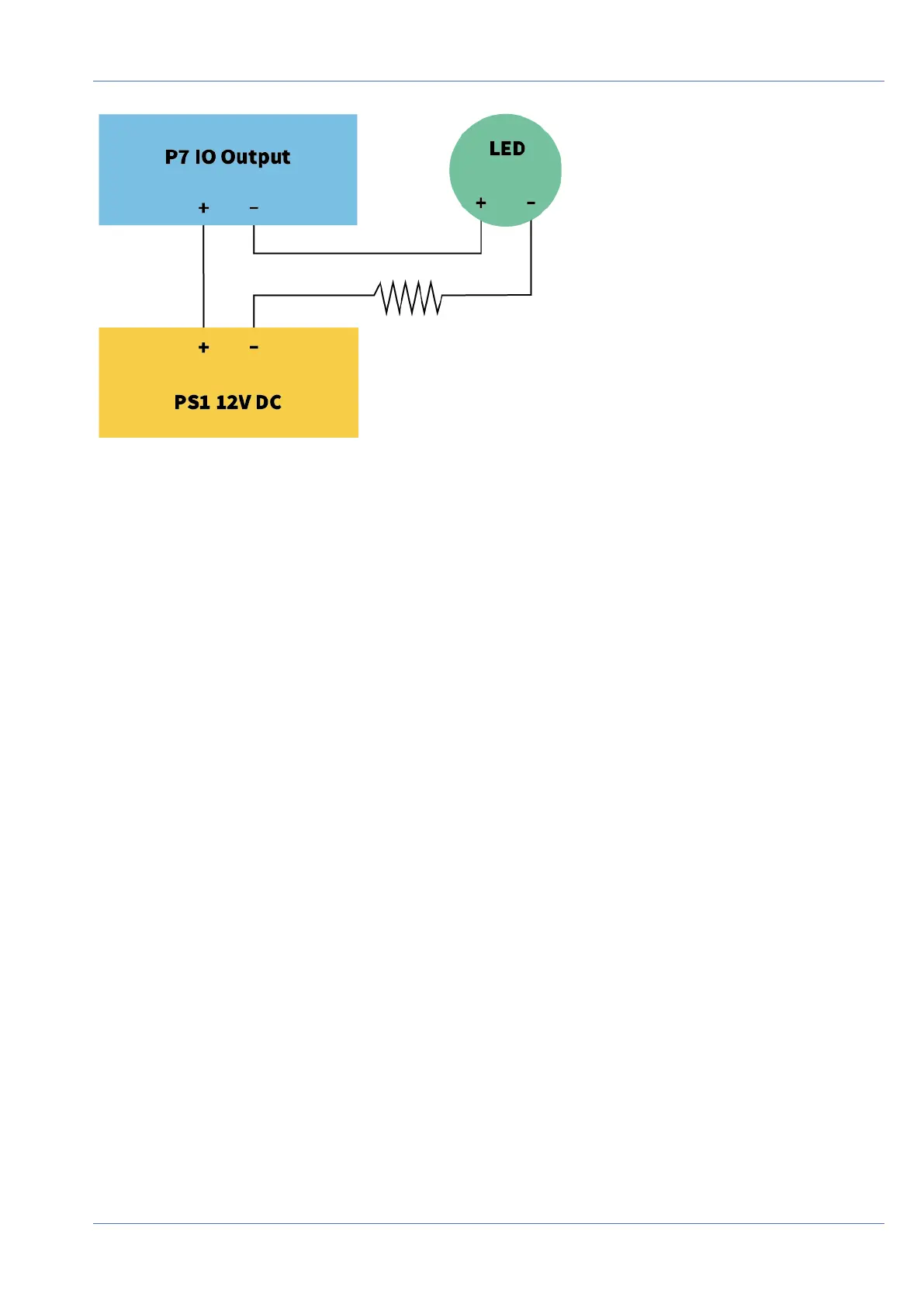

Fig. 67: Example: switching an LED
The value of the pullup resistor depends on the forward voltage of the LED at the specific current you want to
run through it.
EXAMPLE:
n
Amperage through LED: 10mA
n
LED Forward Voltage @ 10mA: 2 V
n
Power supply: 12V DC
n
Resistor value = (12V – 2V) / 10mA = 1 k
Finishing the Installation of the Camera
To finish the installation of the MOBOTIX M73, the entire camera is mounted onto the mounting plate using
the two lock screws. The connections of the camera are established automatically. The installation is finished
by applying the remaining cover plugs to ensure the water-proofness of the housing.
You will need:
n
Allen wrench 5mm M.6
n
2 housing plugs silicone white M.3
n
2 caps for screw plastic white M.15
Mounting
