Mounting
Finishing the Installation of the Camera

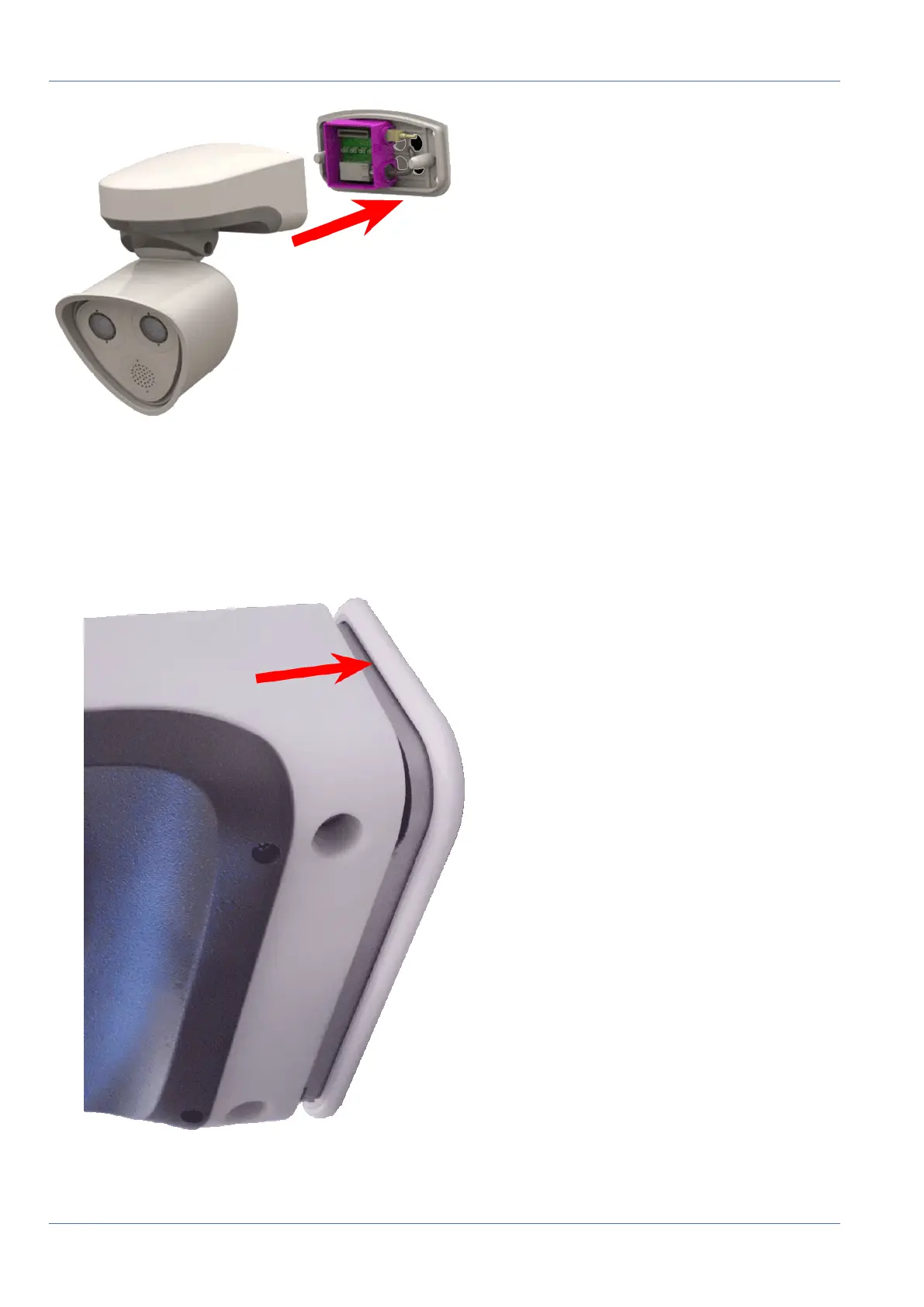

Fig. 68: Attach the camera on the mounting plate to complete the mounting of the camera
Procedure
1. Press the camera body onto the installed mounting plate, so that the wall sealing snugly seals off the cam-
era body.
Fig. 69: Press camera onto mounting plate
83 / 110
