Delivered Parts and Dimensions
Camera Housing and Connectors

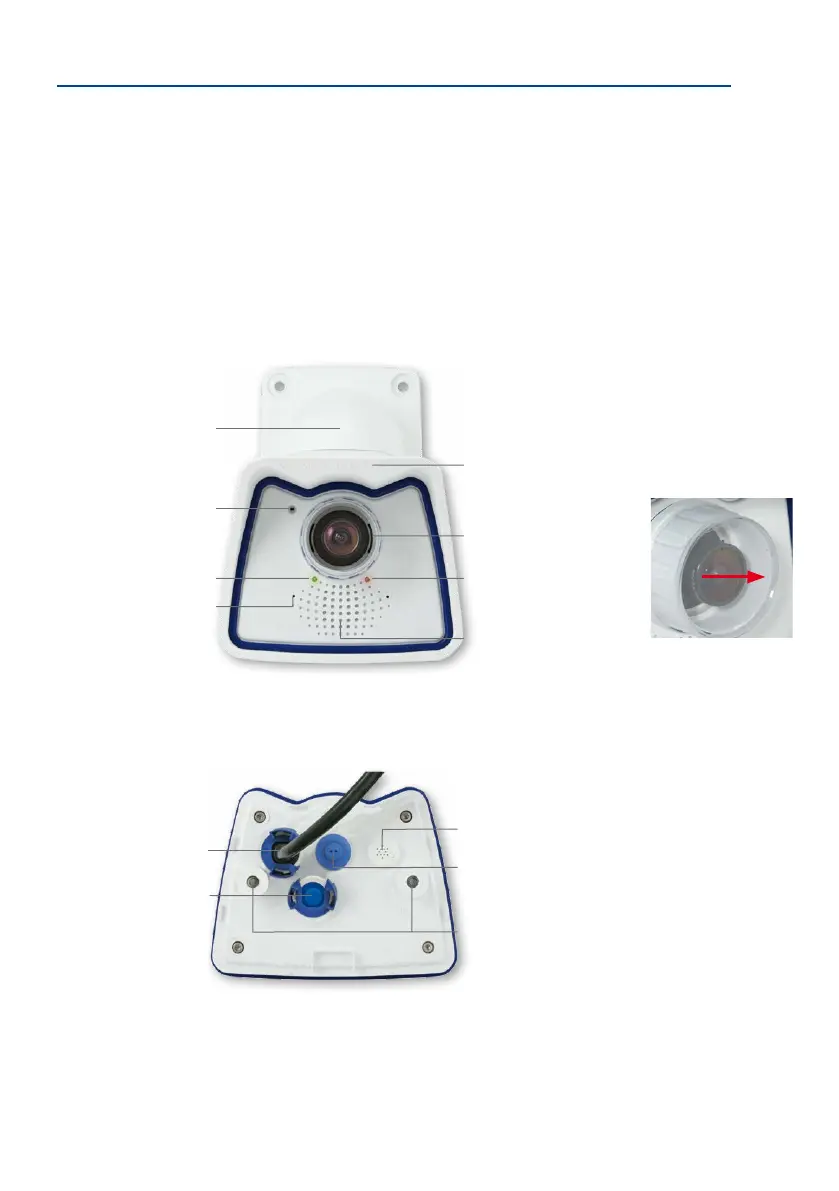

The MOBOTIX M26 consists of the camera in the weatherproof housing and the VarioFlex mount.
Connectors
• Network (Ethernet network including PoE supply)
• Mini USB (e.g. for ExtIO)
• MxBus (only Mx-M26B variant)
• MxBus (for MOBOTIX expansion modules)
Microphone
Wall Mount
Recording
Weatherproof
housing
Lens and lens
cover
Speaker
Power/Status
Key
Ethernet
Pressure vent
MxBus
Retaining screws
USB
Rear (without weatherproof housing)
Make sure that the white
ring remains in the lens
cover as this ring reduces
light reections and
prevents the camera
LEDs from adding reec-
tions to the images
